10.19 Engine PCB ASSY
(1) Disconnect the two Head flat cables from the Guide film to disconnect the two Head flat
cables from the Engine PCB ASSY.

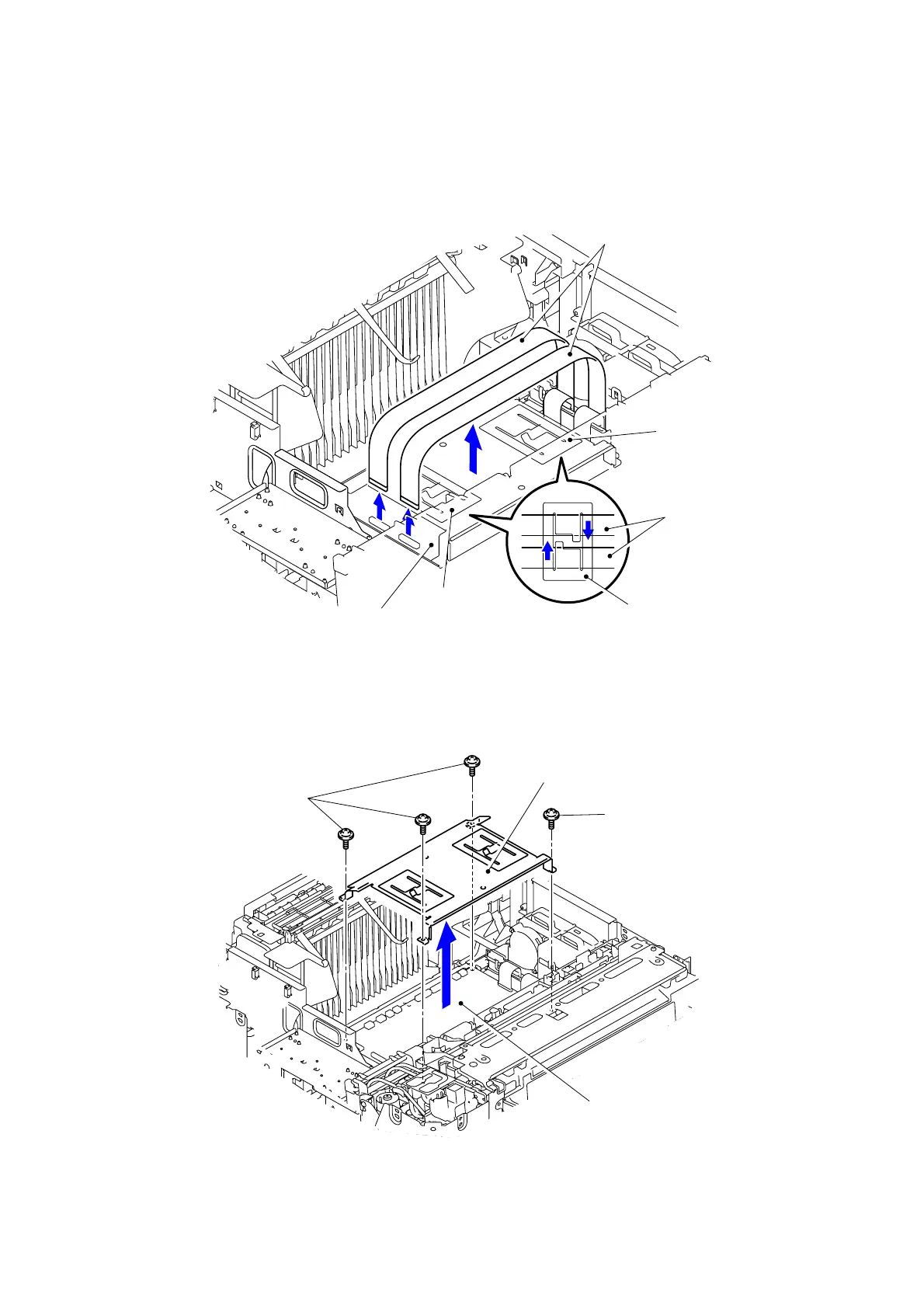

Fig. 3-52
(2) Remove the four Taptite cup S M3x6 SR screws to remove the Engine PCB shield plate.
Fig. 3-53
Engine PCB ASSY
Head flat cable
Guide film
Guide film
Guide film
Head flat cable
Taptite cup S M3x6 SR
Engine PCB shield plate
Taptite cup S M3x6 SR
Engine PCB ASSY
<Front>
