Brother HL-S7000DN - 12.8 Eject Sensor PCB ASSY

3-170
Confidential
12.8 Eject Sensor PCB ASSY

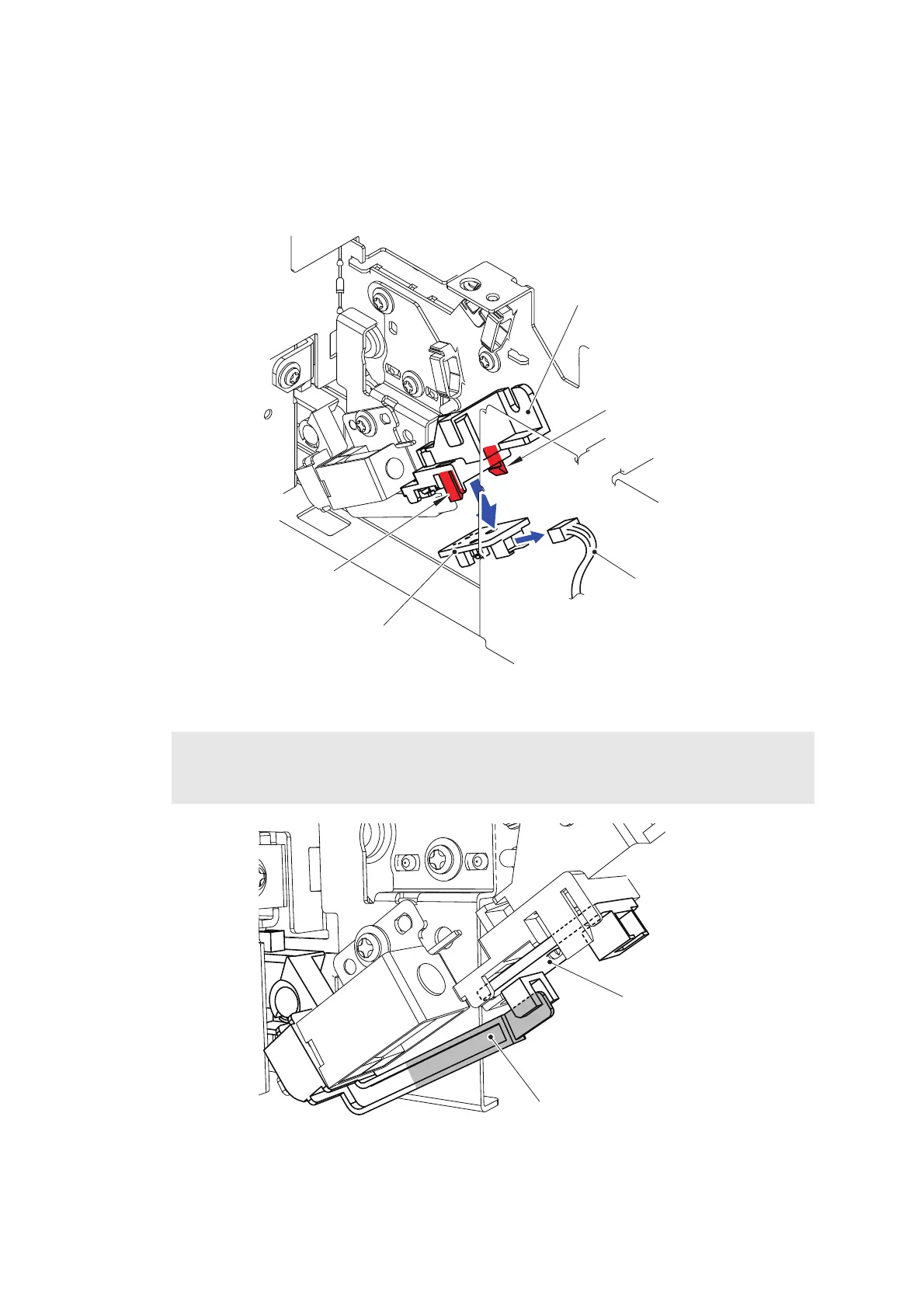

(1) Release the two Hooks to remove the Eject sensor PCB ASSY from the Eject sensor
bracket.
(2) Remove the Eject sensor PCB harness from the Eject sensor PCB ASSY.
Fig. 3-225
Fig. 3-226
Assembling Note:
Be sure to check that the leading edge of the Stacker lever flap is inserted in the Eject
sensor PCB ASSY.
Eject sensor PCB harness
Hook
Eject sensor PCB ASSY
Eject sensor bracket
Hook
1
2
<Right side>
Eject sensor PCB ASSY
Stacker lever flap
