Brother HL-S7000DN - 11.12 Timing Belt

3-136
Confidential
11.12 Timing Belt

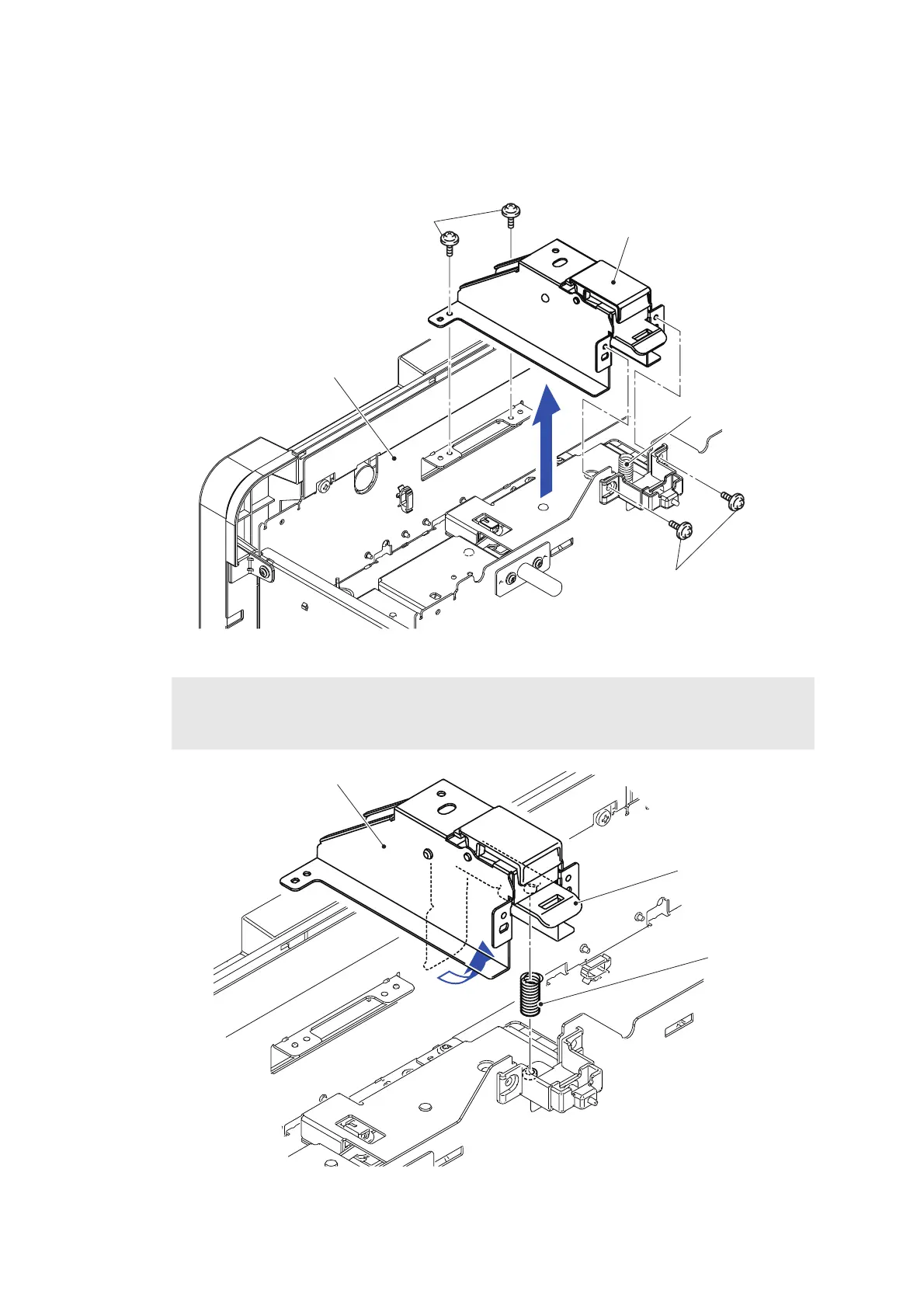

(1) Remove the four Taptite cup S M3x8 SR screws to remove the LT lock L ASSY from the
LT frame L.
Fig. 3-168
Fig. 3-169
Assembling Note:
When assembling the LT lock L ASSY, be sure to assemble the LT lock plate and LT lock L
spring as shown in the figure below.
Taptite cup S M3x8 SR
LT lock L ASSY
Taptite cup S M3x8 SR
<Front>
LT frame L
LT lock L spring
LT lock L spring
LT lock plate
LT lock L ASSY
