(4) Disconnect the wiring of the LT clutch to remove the LT clutch.

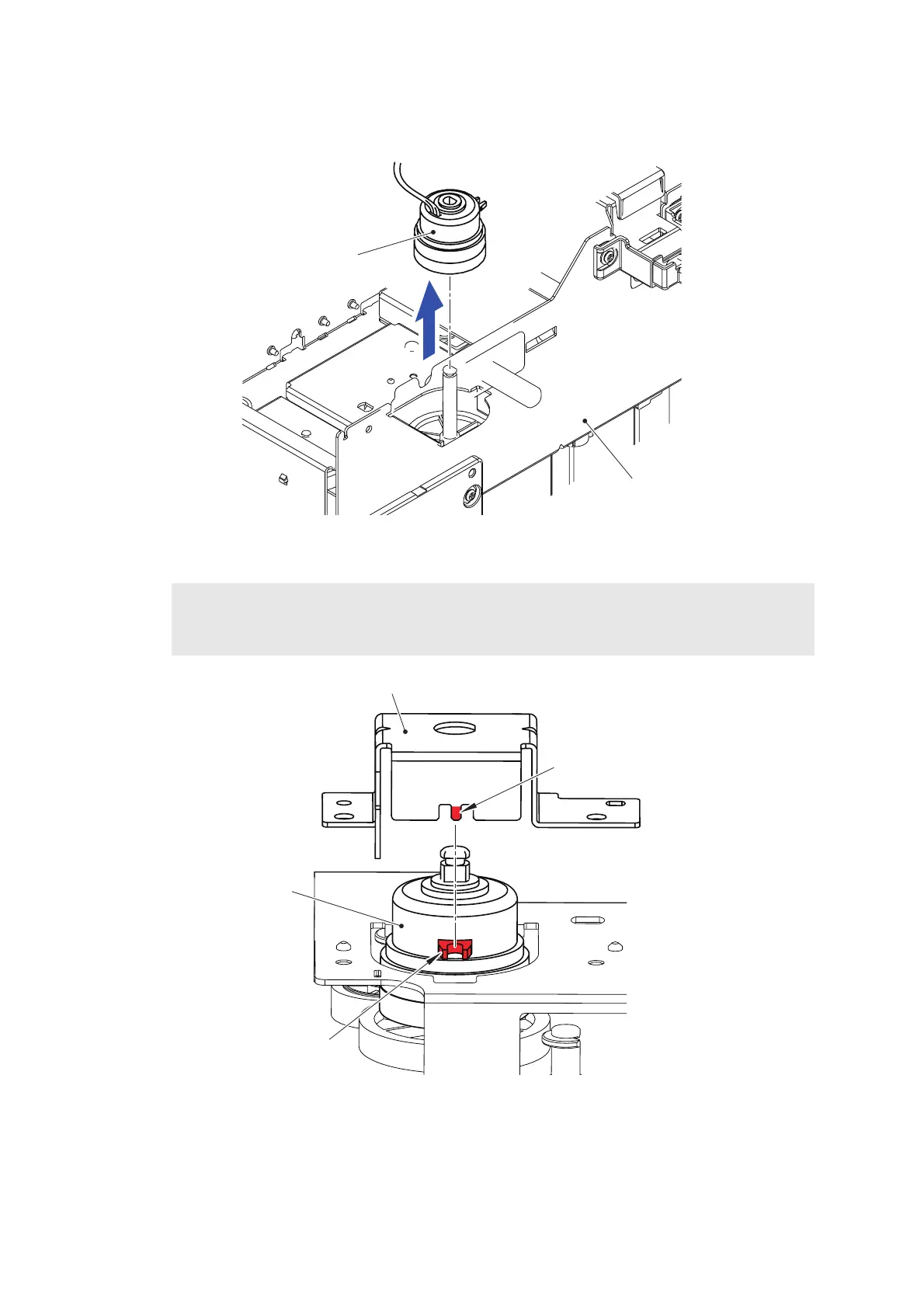

Fig. 3-166
Fig. 3-167
Assembling Note:
When assembling the LT clutch, be sure to fit the Rib of the Clutch hold plate into the
Rotation stopper of the LT clutch as shown in the figure below.
LT clutch
<Front>
LT frame L
クラッチホールドプレート
リブ
Rib
LT clutch
Clutch hold plate
Rotation stopper
