Brother HL-S7000DN - 11.8 LT Side Cover L

3-129
Confidential
11.8 LT Side Cover L

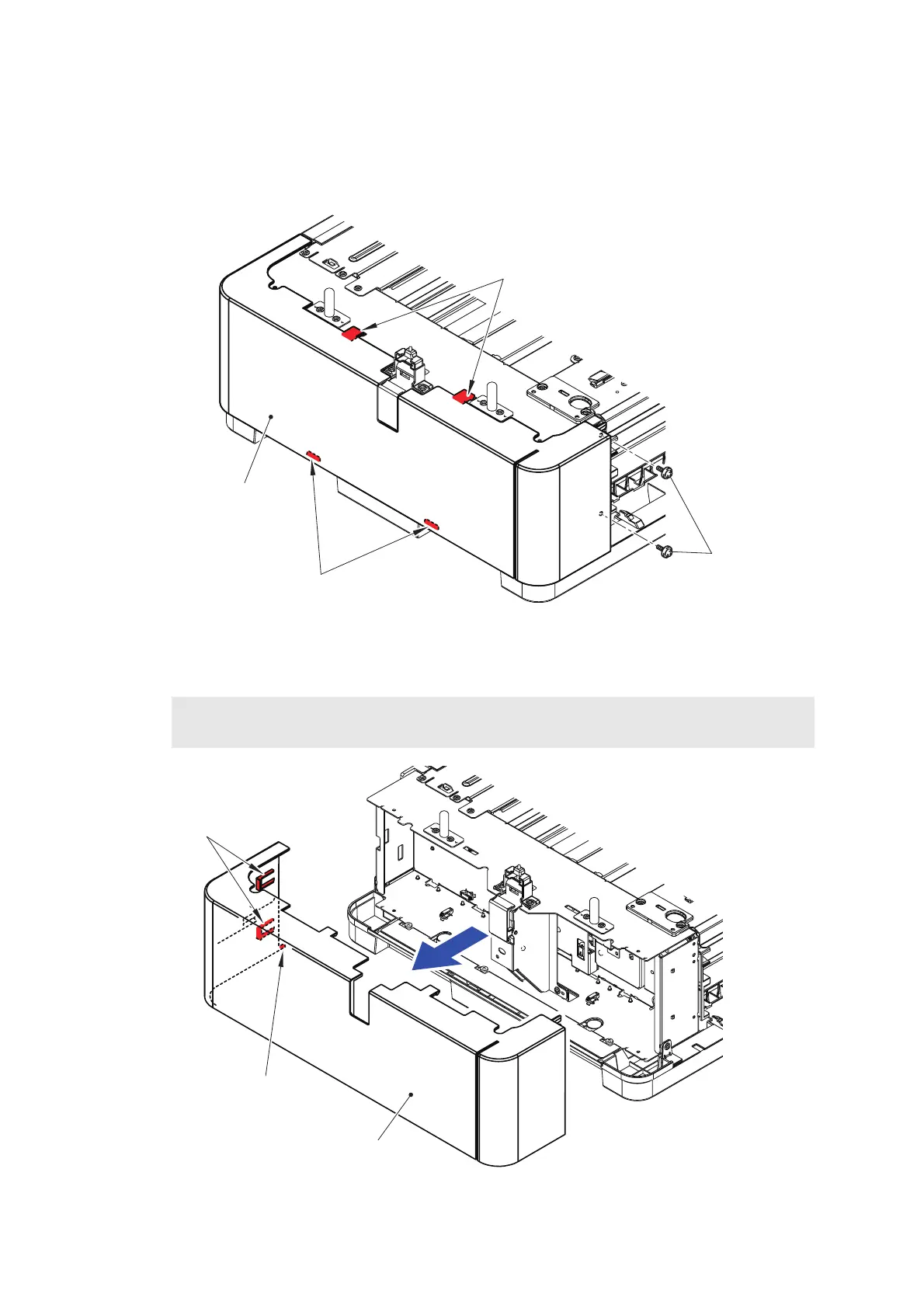

(1) Remove the two Taptite cup S M3x6 SR screws from the LT side cover L.
(2) Release the two Hooks at the upper side and two Hooks at the lower side.
Fig. 3-156
(3) Release the two Hooks and slide the LT side cover L in the direction of the arrow to
remove it from the LT frame unit.
Fig. 3-157
Note:
Be careful when you remove the LT side cover R as its "A" is easily broken.
Taptite cup S
Hook
Hook
LT side cover L
<Front>
M3x6 SR
Hook
LT side cover L
“A”
<Front>
