4-35
Confidential
7.3 Input of Platen Adjustment Value
(Maintenance Mode: Code 31)

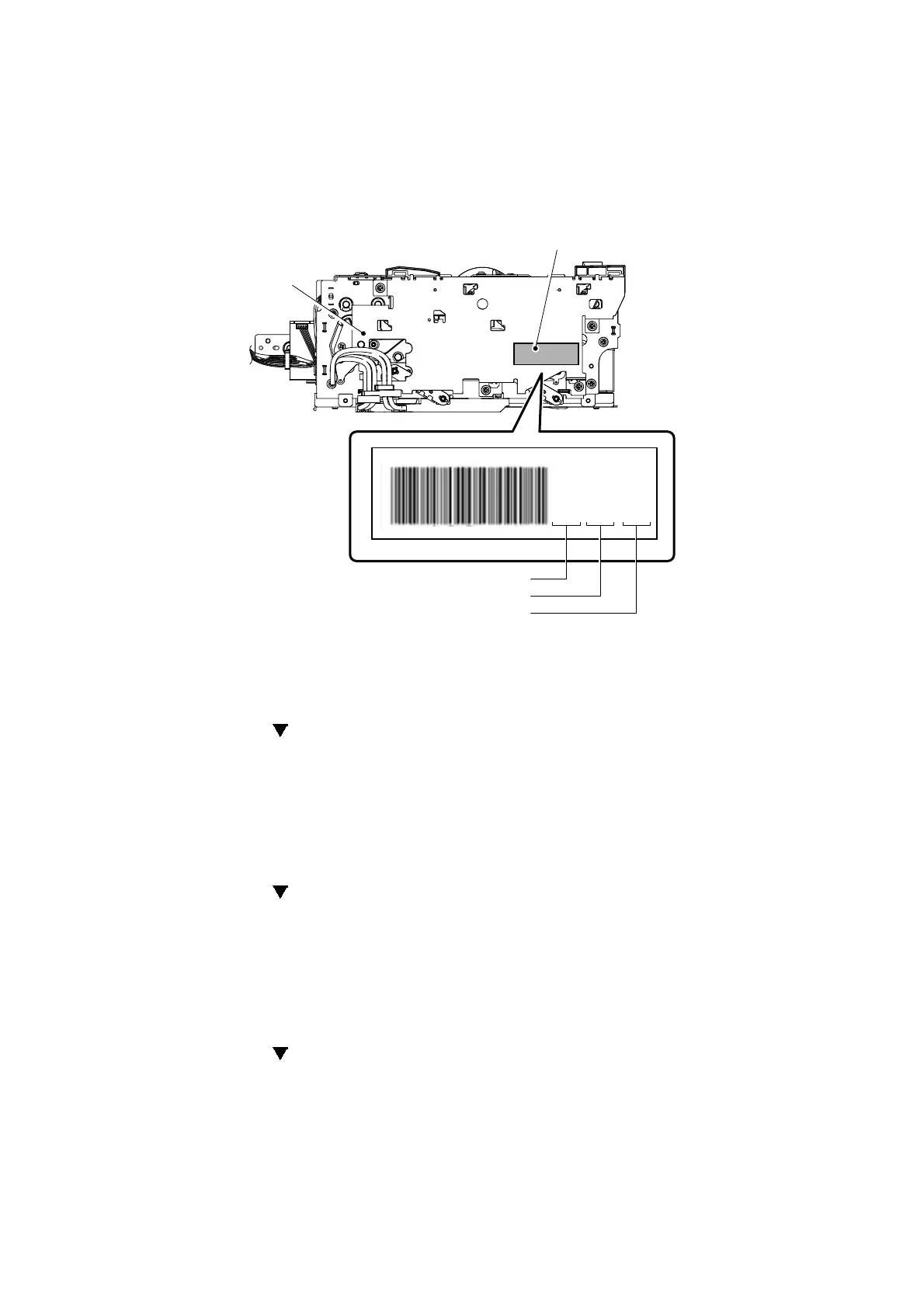

(1) Check the platen barcode shown in the figure below.
Record all the three values in the barcode.
Fig. 4-13
(2) Press the 3 and 1 buttons in this order in the initial state of the maintenance mode.
Wait until "1.CAP PRSR CHK" appears on the LCD.
(3)
Press the button to display "
6.PLATEN ADJ
" on the LCD and press the
OK
button.
(4) Enter the recorded value for the platen cap position using the ten-key pad.
For example, press the 2 and 3 buttons in this order in the case of the above figure.
(5) Press the OK button. The machine saves the platen cap position and returns to the initial
state of the maintenance mode.
(6) Press the 3 and 1 buttons again in this order. Wait until
"
1.CAP PRSR CHK
"
appears on
the LCD.
(7)
Press the button to display "
8.PLATEN WP-ADJ
" on the LCD and press the
OK
button.
(8) Enter the recorded value for the wipe position using the ten-key pad.
For example, press the 1 button twice in the case of the above figure.
(9) Press the OK button. The machine saves the wipe position and returns to the initial state
of the maintenance mode.
(10) Press the 3 and 1 buttons again in this order. Wait until
"
1.CAP PRSR CHK
"
appears on
the LCD.
(11)
Press the button to display "
9.RIBPLATEN ADJ
" on the LCD and press the
OK
button.
(12) Enter the recorded value for the rib platen position using the ten-key pad.
For example, press the 1 and 2 buttons in this order in the case of the above figure.
(13) Press the OK button. The machine saves the rib platen position and returns to the initial
state of the maintenance mode.
11 23 12
Barcode
Wipe position
Platen cap position
Rib platen position
Platen unit
To Next Page
