10.2 Paper Tray
(1) Open the Retard roller cover and remove the two Pins to remove the Retard roller cover
from the Paper tray.

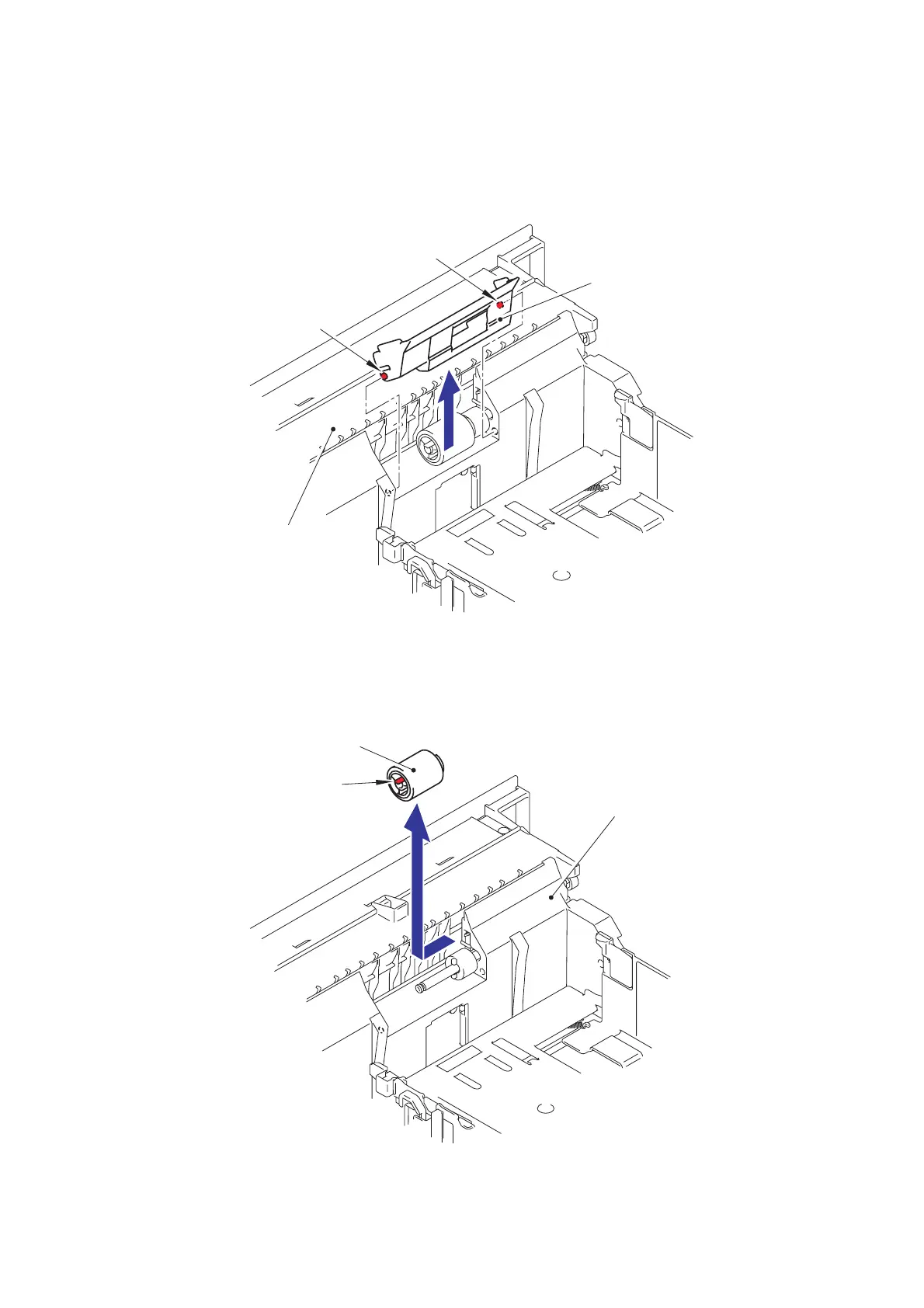

Fig. 3-1
(2) Release the Hook of the Retard roller to remove the Retard roller from the Paper tray.
Fig. 3-2
Retard roller cover
Paper tray
Pin
Pin
Retard roller
Paper tray
Hook
