11.16 Lift Lever A/B

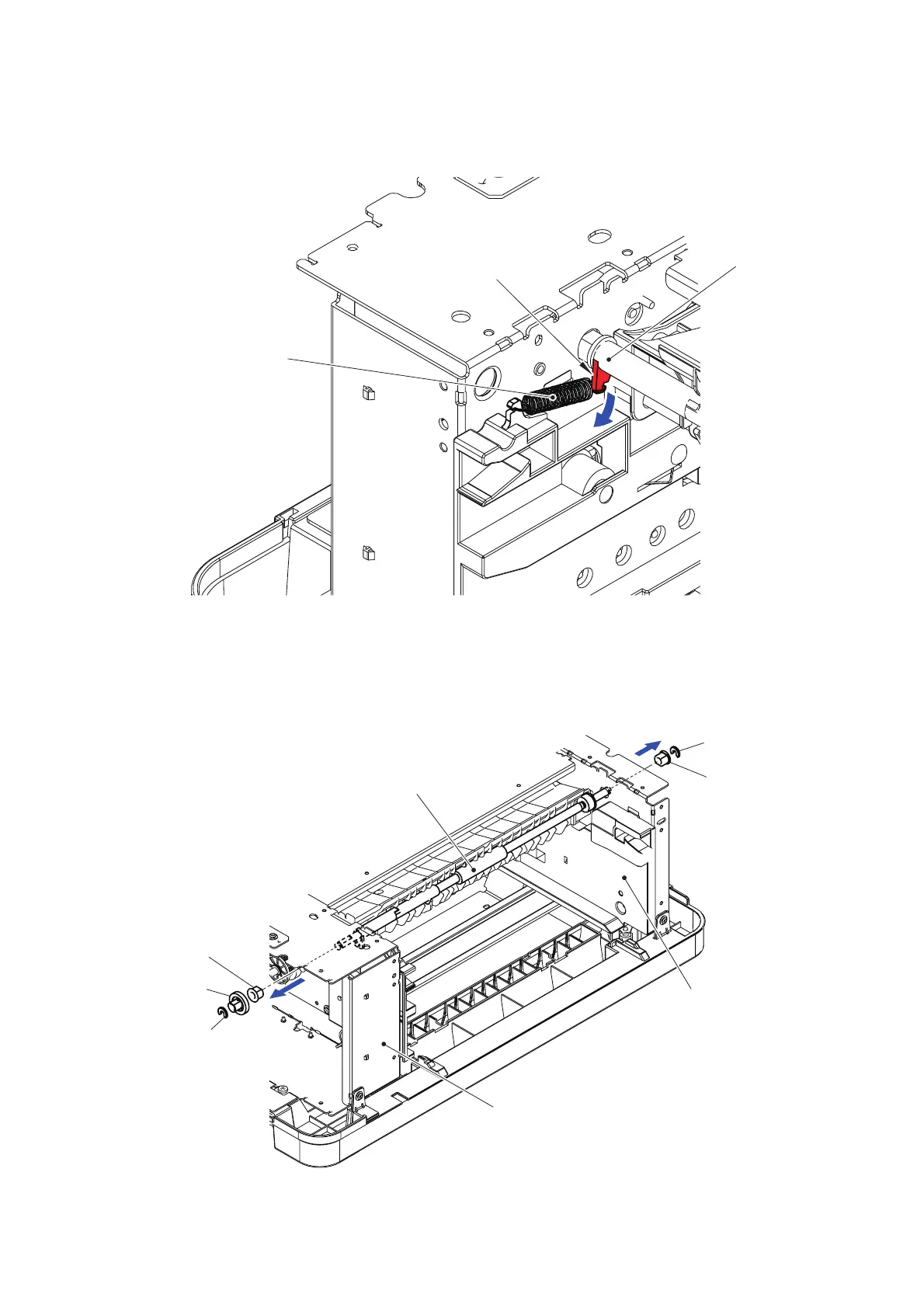

(1) Remove the Lift lever spring from the Lift lever A.
Fig. 3-178
(2) Remove the Collar 6 on the right side of the LT feed roller ASSY
(3) Remove the Collar 6 on the left side of the LT feed roller ASSY to remove the Feed roller gear.
(4) Remove the Bush from the LT frame L.
(5) Remove the Bush from the LT frame R.
Fig. 3-179
Lift lever A
Lift lever spring
Hook
<Front>
<Front>
Collar 6
Collar 6
Bush
Bush
LT frame R
LT feed roller ASSY
LT frame L
Feed roller
gear
