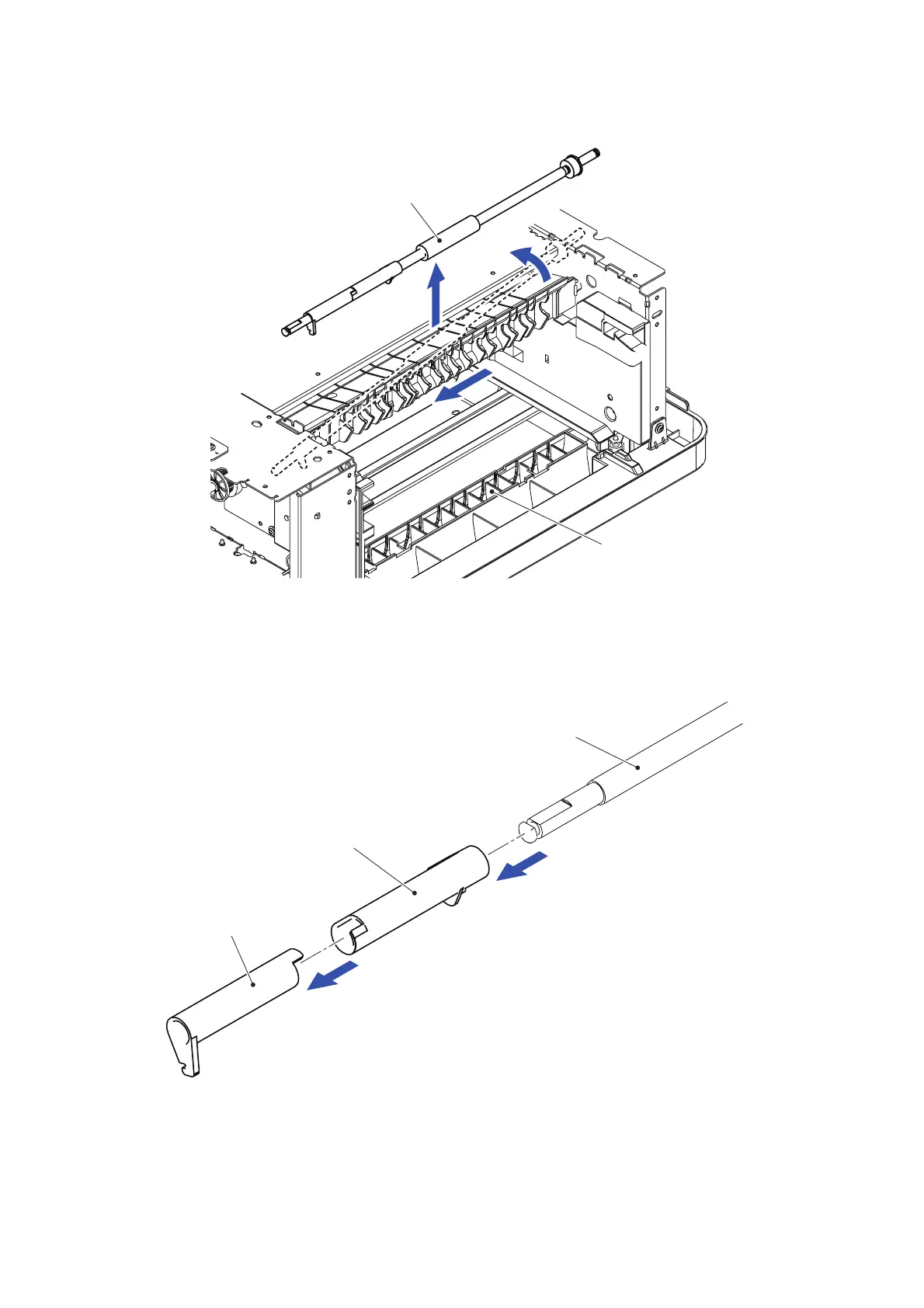

(6) Remove the LT feed roller ASSY from the LT frame unit in the order of the arrows.
Fig. 3-180
(7) Pull out the Lift lever A/B from the LT roller ASSY.
Fig. 3-181
LT feed roller ASSY
6a
6b
6c
<Front>
LT frame unit
LT roller ASSY
Lift lever A
Lift lever B
