3-107
Confidential

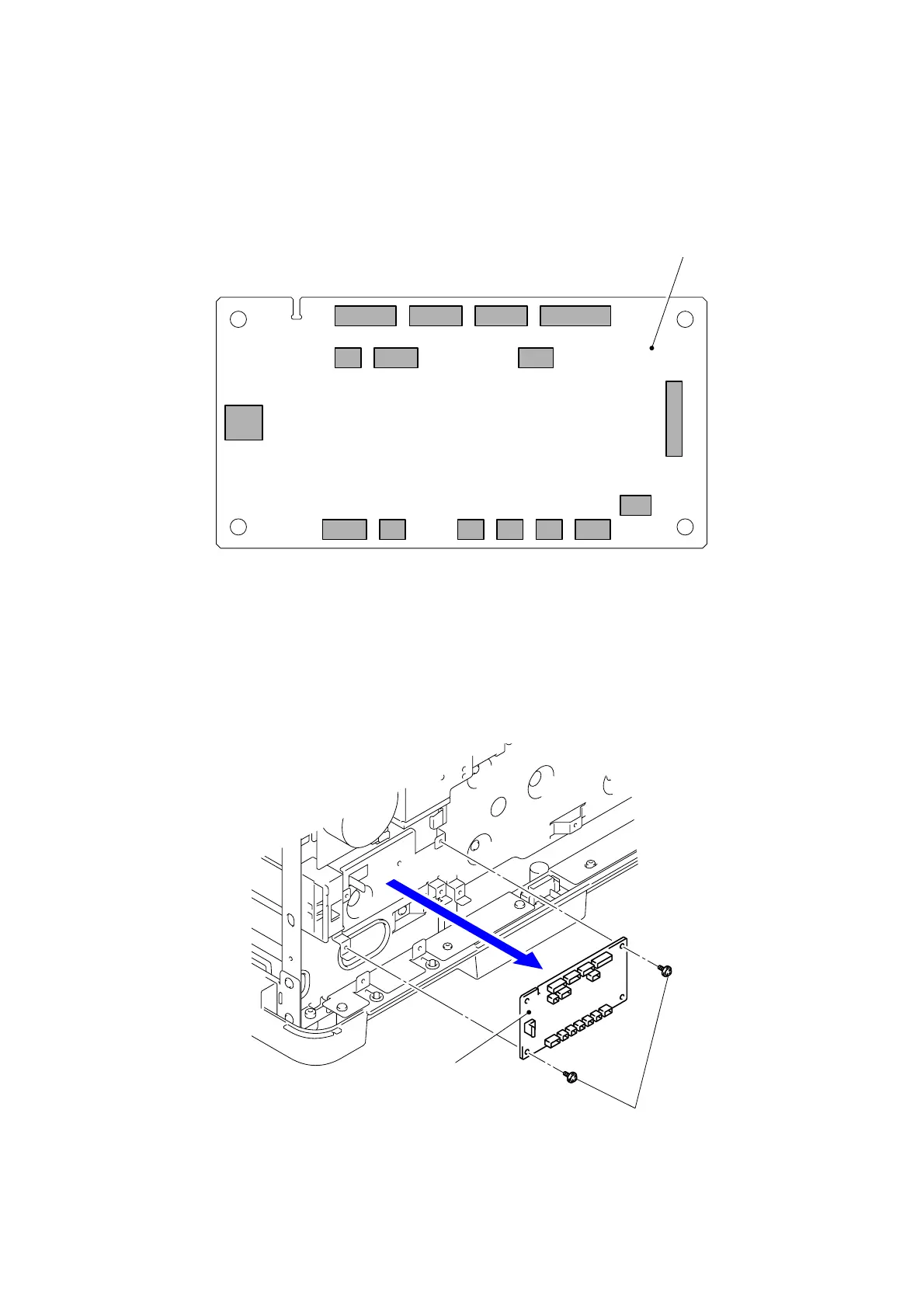

10.28 Paper Feed PCB ASSY
(1) Disconnect the all Connectors from the Paper feed PCB ASSY.
Fig. 3-123
(2) Remove the two Taptite cup S M3x6 SR screws to remove the Paper feed PCB ASSY.
Fig. 3-124
Paper feed PCB ASSY
CN2CN3CN4CN5
CN6
CN10CN11CN12CN13CN14
CN9
CN1
CN15
CN7CN8
CN16
Taptite cup S M3x6 SR
Paper feed PCB ASSY
<Right side>
