Brother HL-S7000DN Service Manual

5-45
Confidential
1.4.20 Frame pattern print (Two-sided) (Function code 70)
<Function>
This function allows you to print one page of the frame pattern of the external circumference in
two-sided printing and check if there is any deviation or omission of print.
<Operating procedure>
Before starting the following procedure, set a letter-size paper on which test pattern is printed.
(1) Press the 7 and 0 buttons in this order in the initial state of the maintenance mode.
"PRINTING" is displayed on the LCD, and one page of the frame pattern (refer to the
figure below) in two-sided printing.
(2) When print is completed, "WAKU DX" is displayed on the LCD.
If printing fails, the following error indications are displayed and printing is cancelled.
To print again, refer to the measures in the table below and remove the cause of the error.
Then, press the Go button.
"WAKU DX" is displayed on the LCD, and press the OK button.
"PRINTING" is displayed on the LCD, and one page of the frame pattern is printed on two
side of paper.
(3) To print the frame pattern again, press the OK button.
(4) To return the machine to the initial stage of the maintenance mode, press the Cancel
button.

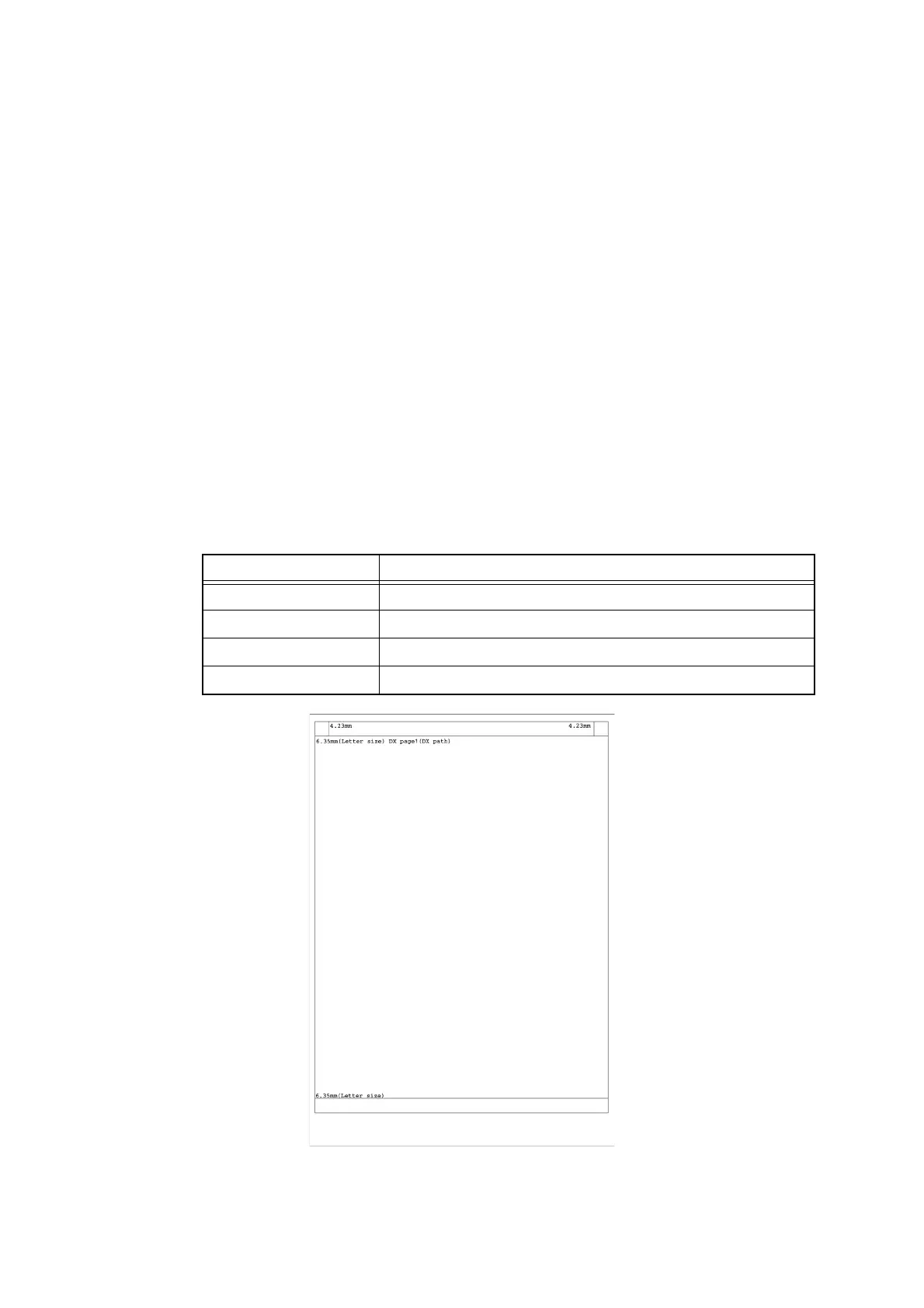

Fig. 5-27
LCD Measure
Cover is Open Close the front cover.
No Paper Load paper and close the paper tray.
Jam Tray1 Remove jammed paper and close the paper tray.
Jam Rear Remove jammed paper and close all covers.

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
