Brother HL-S7000DN - 10.23 Ink Head ASSY;Pre-coat Head ASSY

3-85
Confidential
10.23 Ink Head ASSY/Pre-coat Head ASSY

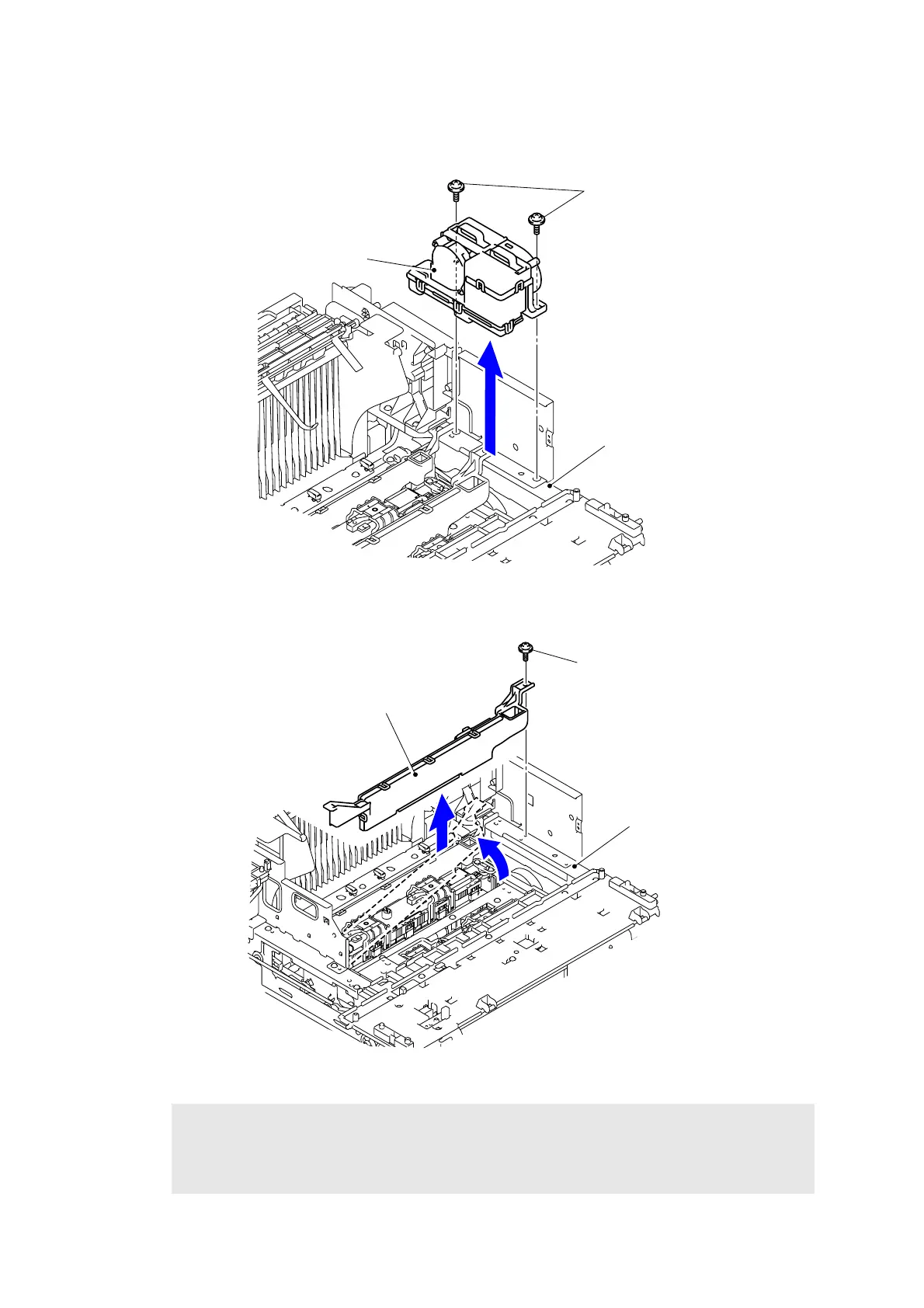

(1) Remove the two Taptite cup S M3x6 SR screws to remove the Fan unit.
Fig. 3-90
(2) Remove the Taptite cup S M3x6 SR screw to remove the Pre-coat duct.
Fig. 3-91
Assembling Note:
For the products which have only one fan in the Fan unit, be sure to insert the harness of
the Fan unit to the white connector of the Engine PCB. If it is connected to the red
connector, an error of unconnected Fan unit harness occurs.
Taptite cup S M3x6 SR
Fan unit
CR frame unit
Taptite cup S M3x6 SR
Pre-coat duct
CR frame unit
