3-84
Confidential
(17) Install the Drain cap to Needle section of each Head joint of the Ink head ASSY and
Pre-coat head ASSY.

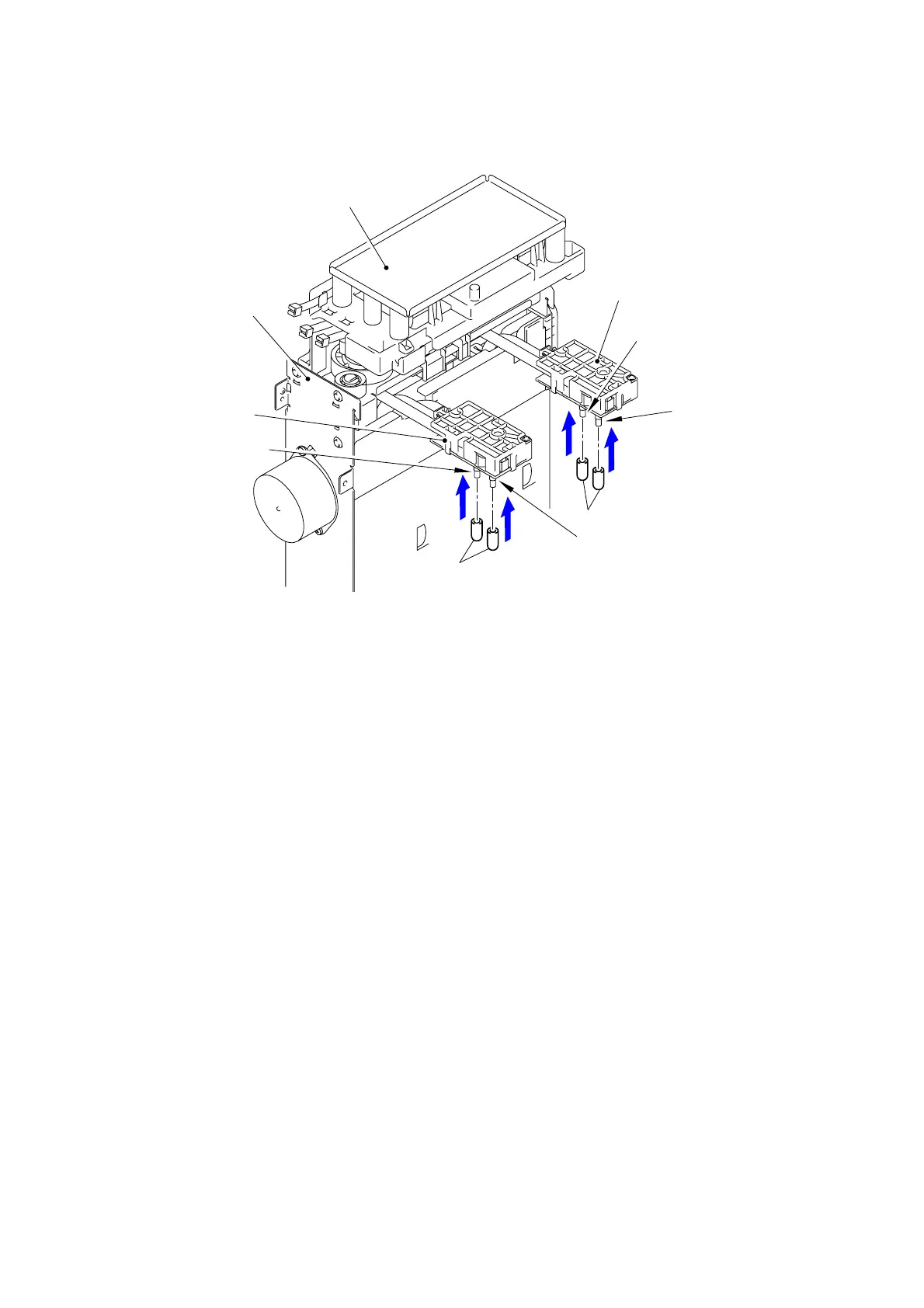

Fig. 3-89
Drain cap
Needle section
Needle section
Head joint
Head joint
Supply pump ASSY
Drain cap
Needle section
Needle section
Sub tank ASSY
