Brother HL-S7000DN - 10.25 Drive Frame ASSY

3-99
Confidential
10.25 Drive Frame ASSY
(1) Remove the four Tubes at the Drive frame ASSY side connected to the Drive frame
ASSY.
(2) Install the L joint with the Drain cap to the removed four Tubes. Install the Drain cap to
Needle section at the Drive frame ASSY side.
- PF waste tube D x2
- PF waste tube E x2

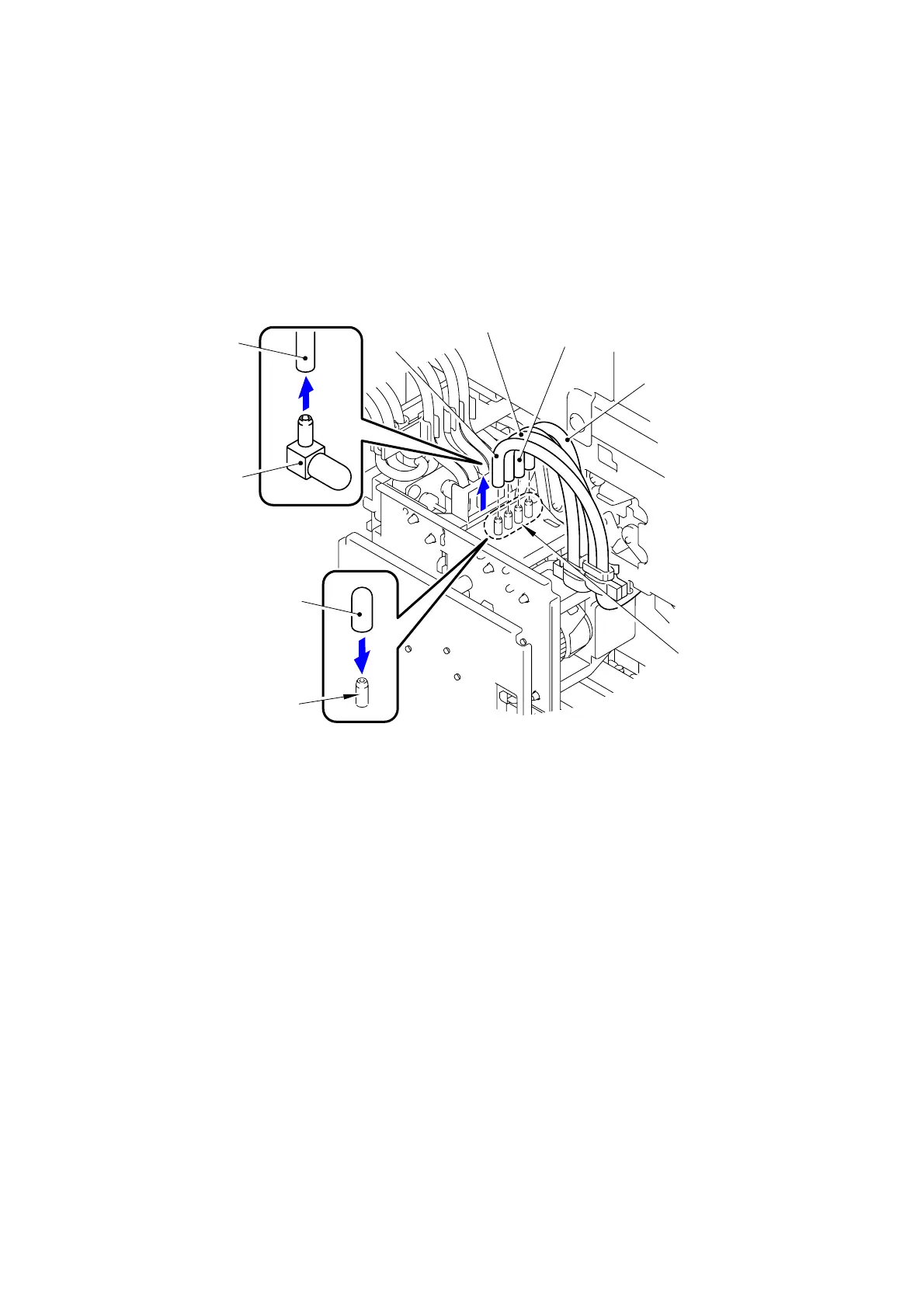

Fig. 3-110
Tube
L joint with the
Drain cap
Needle section
Needle section
Drain cap
PF waste tube D
PF waste tube E
PF waste tube D
PF waste tube E
