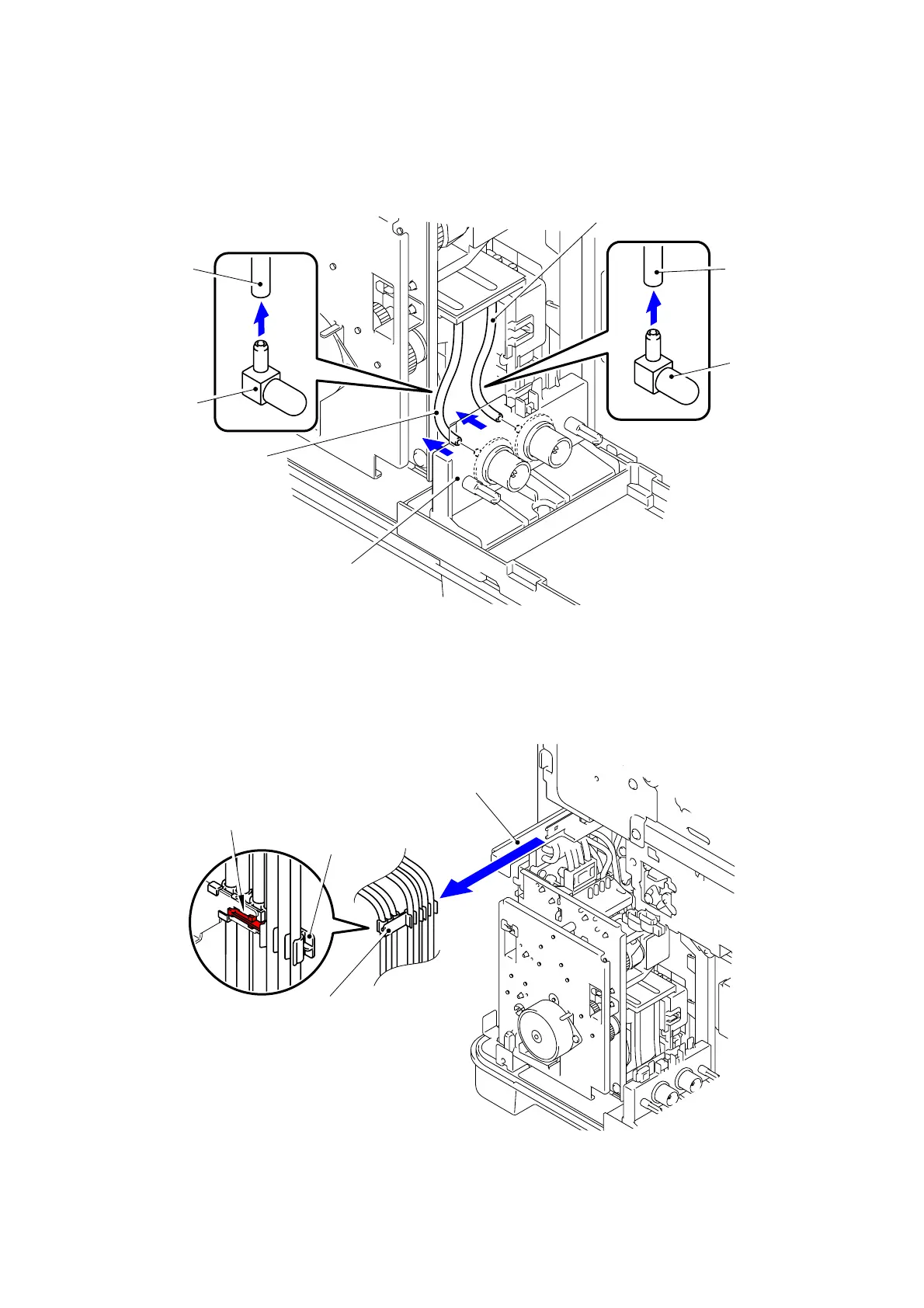

(3) Remove the two Tubes at the Waste ink box side connected to the Waste ink box. Install
the L joint with the Drain cap to the removed two Tubes.
- Waste ink box tube x2
Fig. 3-111
(4) Release the Hook to remove the Tube holder 3 from the Tube holder bracket.
Fig. 3-112
Waste ink
L joint with the
Drain cap
box tube
Waste ink
L joint with the
Drain cap
box tube
Waste ink box
Waste ink box tube
Waste ink box tube
Tube holder 3
Tube holder 3
Hook
<Left side>
Tube holder bracket
