11. DISASSEMBLY PROCEDURE
(OPTIONAL TRAY)
11.1 Retard Roller
(1) Open the Retard roller cover.
(2) Release the Hook of the Retard roller to remove the Retard roller from the Retard roller
shaft.

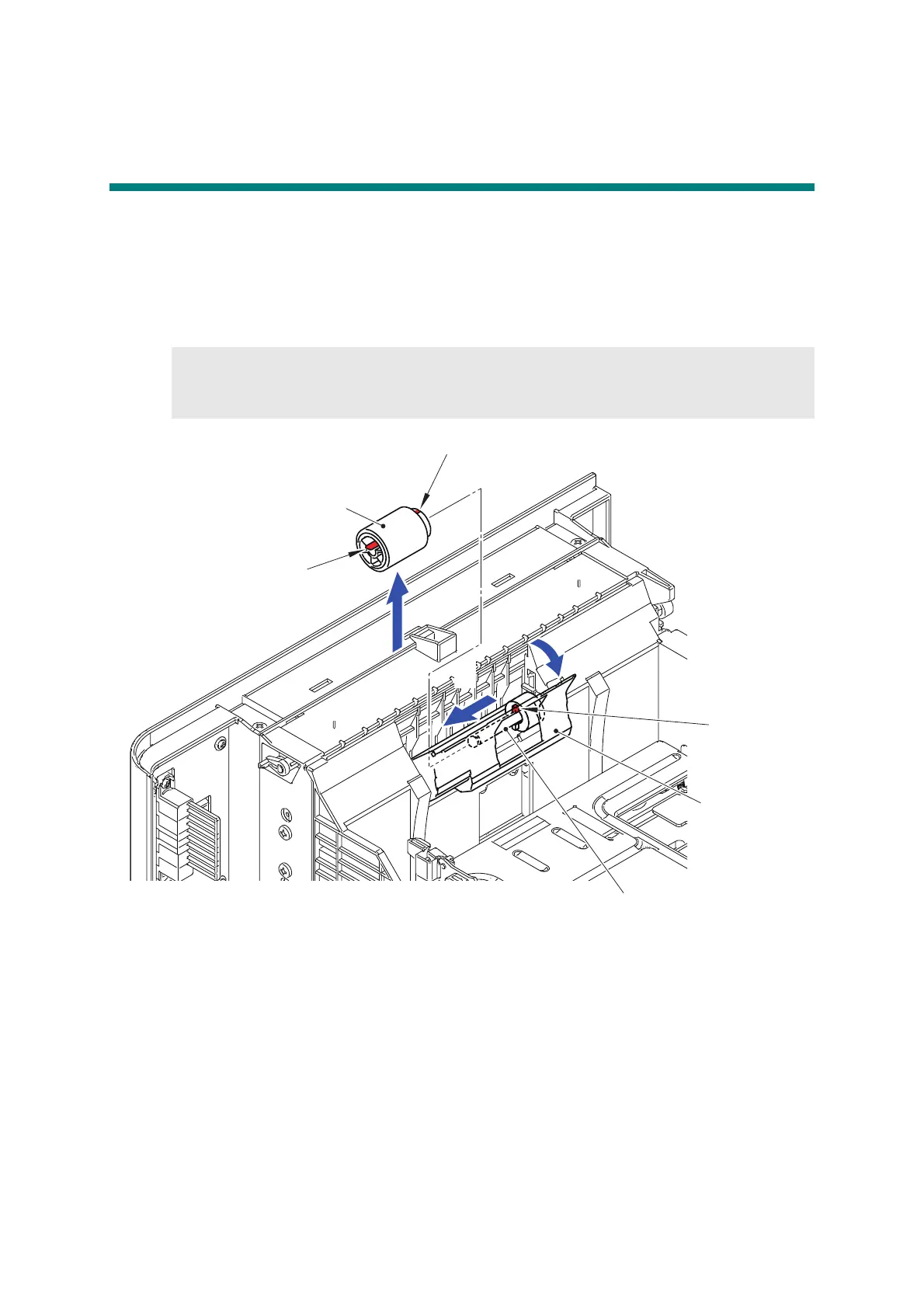

Fig. 3-146
Assembling Note:
Be sure to assemble the Retard roller in a way that the "A" of the Paper tray fits into the
Groove of the Retard roller.
Hook
Retard roller cover
Retard roller
Grove
“A”
1
2b
2a
Retard roller shaft
