Brother HL-S7000DN Service Manual

5-14
Confidential
1.4.8 Adjustment of waste ink box sensor (Function code 19)
<Function>
This function allows you to check the operation of the waste ink box sensor and adjust the
output voltage of the waste ink box full sensor/waste ink box leak sensor. A waste ink box
having ink less than full is necessary when adjusting the output voltage of the waste ink box
full sensor/waste ink box leak sensor.
<Operating procedure>
(1) Press the 1 and 9 buttons in this order in the initial state of the maintenance mode.
"PULL BOX" is displayed on the LCD.
(2) Remove the waste ink box. If the waste ink box sensor works normally, the machine
displays "Insert BOX A" on the LCD. If the indication does not appear after removing the
waste ink box, the waste ink box sensor may be faulty.
(3) Install the waste ink box with waste ink less than full. When the waste ink box is installed,
the machine measures the output voltage of the waste ink box full sensor and displays
"FULL*.**V" on the LCD. If the displayed voltage is between 0.40 and 0.60 V, that means
the voltage is within the normal range.
(4) Press the Go button. If you press the Go button while the displayed voltage is within the
normal range of 0.40 to 0.60 V, you go to step (6). If you press the Go button while the
displayed voltage is outside the normal range, "Readjust" appears on the LCD and the
second measurement is performed.
(5) After the second measurement, the machine displays the measured voltage on the LCD.

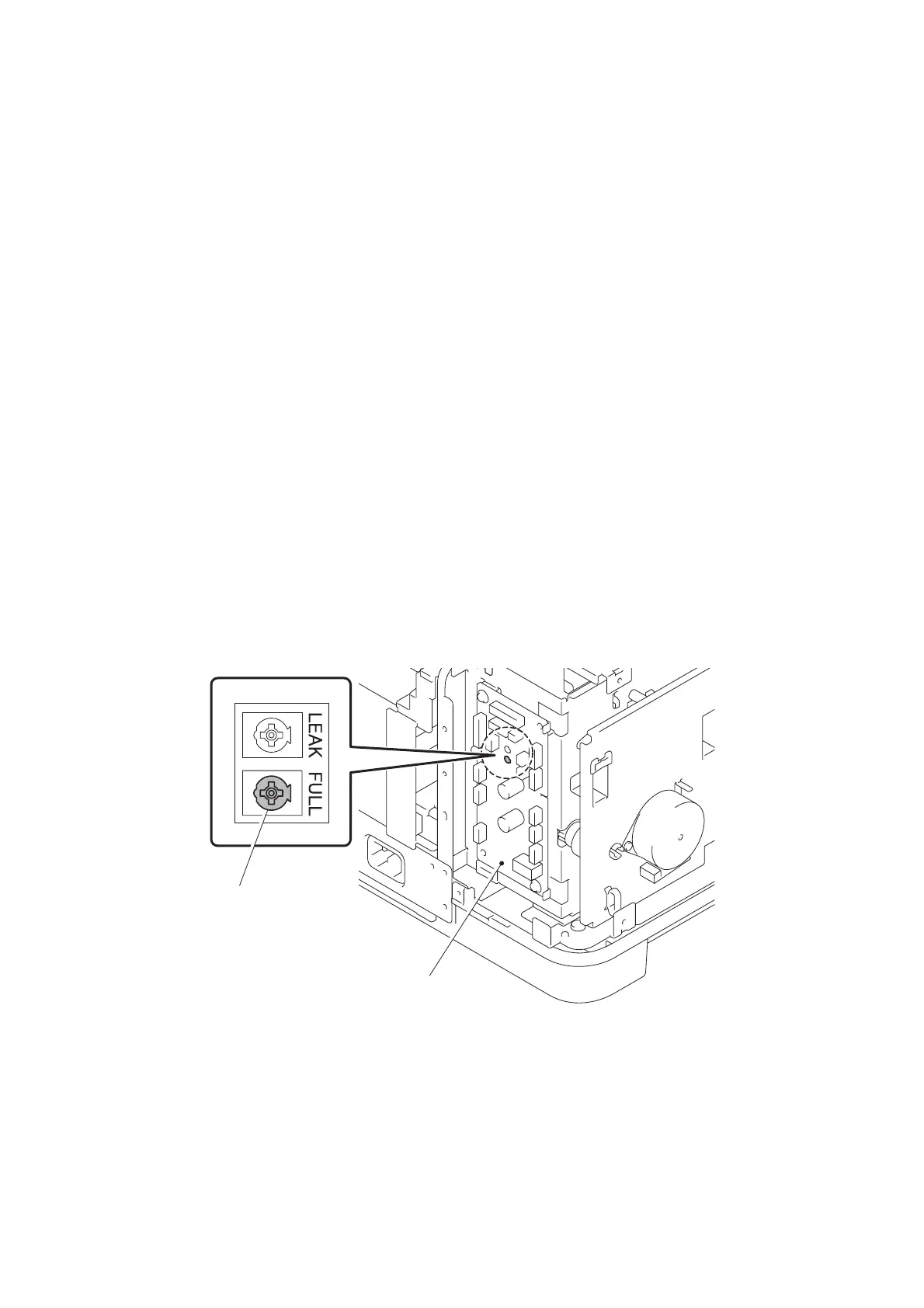

Using the volume shown in the figure below, adjust the displayed voltage so that it
becomes within the range of 0.40 to 0.60 V. After the adjustment, press the Go button.
Fig. 5-4
(6) "LEAK*.**V" is displayed on the LCD.
Press the Go button. If you press the Go button while the displayed voltage is within the
normal range of 0.40 to 0.60 V, you go to step (8). If you press the Go button while the
displayed voltage is outside the normal range, "Readjust" appears on the LCD and the
second measurement is performed.
Maintenance drive PCB ASSY
Volume

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
