12.9 Paper Stacker Sensor PCB ASSY
(1) Release the two Hooks to remove the Paper stacker sensor PCB ASSY from the Paper
stacker sensor bracket.
(2) Disconnect the Paper stacker sensor PCB harness from the Paper stacker sensor PCB
ASSY.

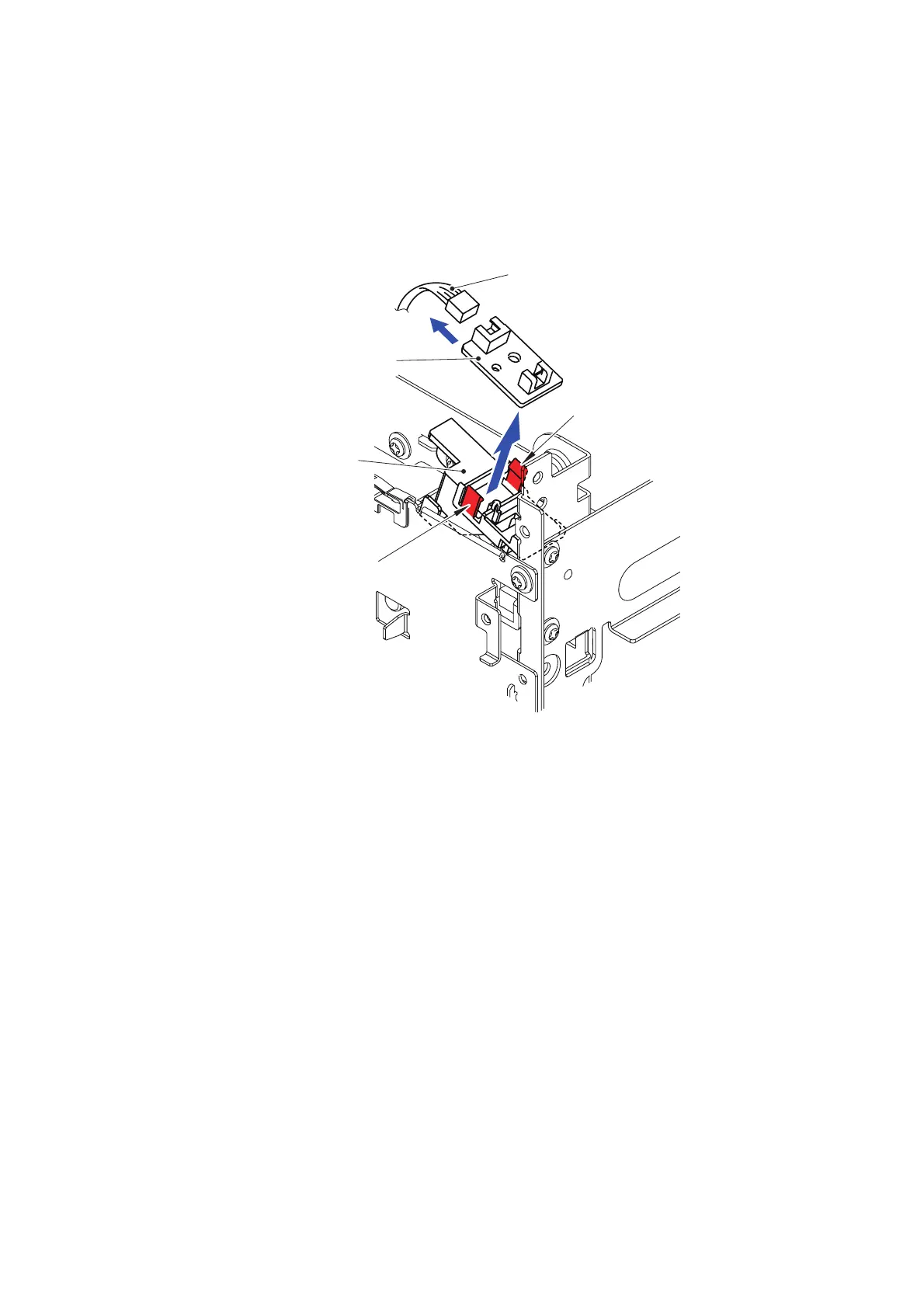

Fig. 3-227
Hook
Paper stacker sensor bracket
Paper stacker sensor PCB ASSY
Paper stacker sensor PCB harness
Hook
<Right side>
1
2
