3-35
Confidential

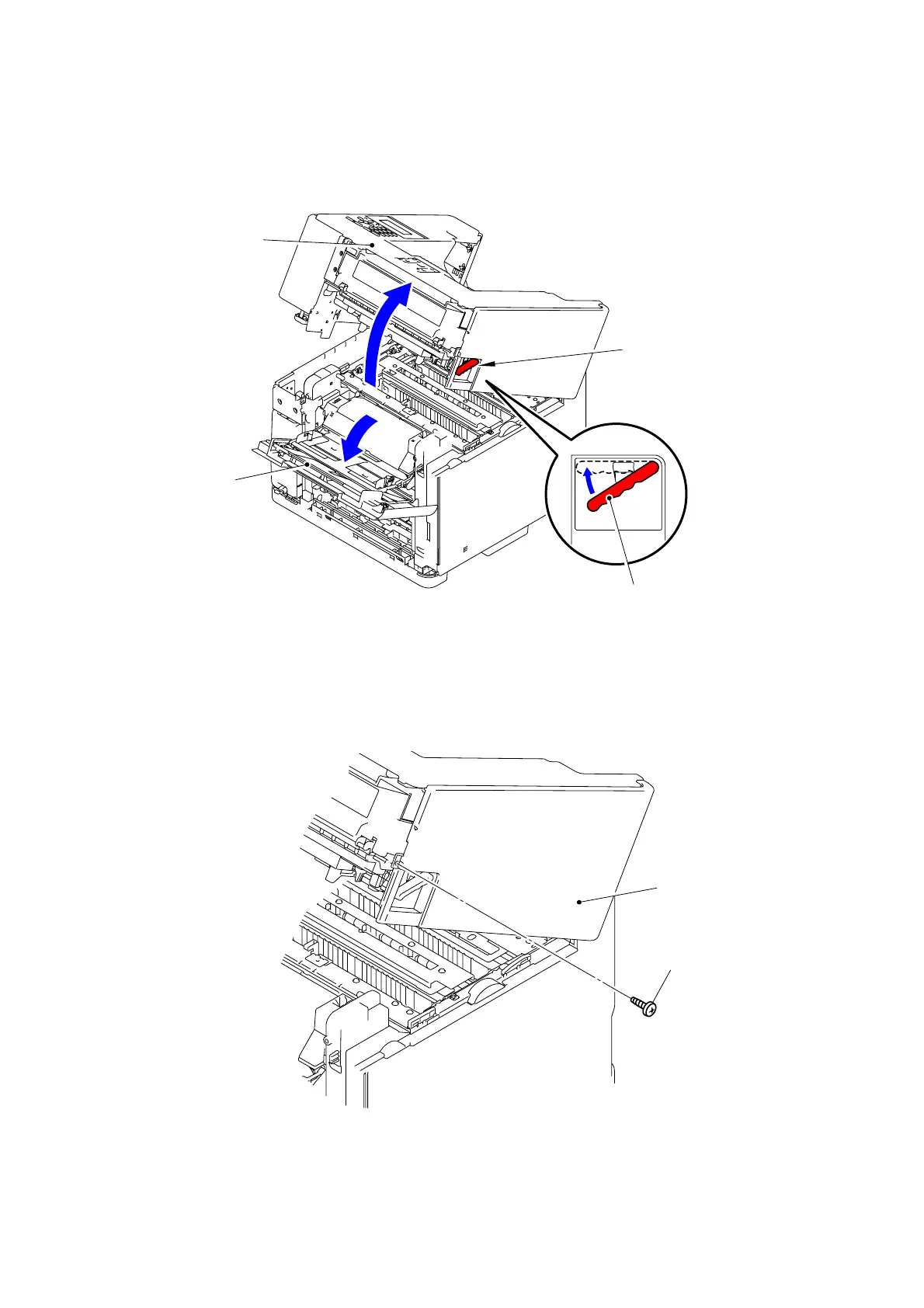

10.8 Top Cover R
(1) Pull the Open lever to open the Top cover. Open the MP cover ASSY.
Fig. 3-16
(2) Remove the Taptite bind B M4x10 screw.
Fig. 3-17
<Front>
Open lever
Open lever
Top cover
MP cover ASSY
Taptite bind B M4x10
Top cover R
<Front>
