Brother HL-S7000DN Service Manual

2-118
Confidential

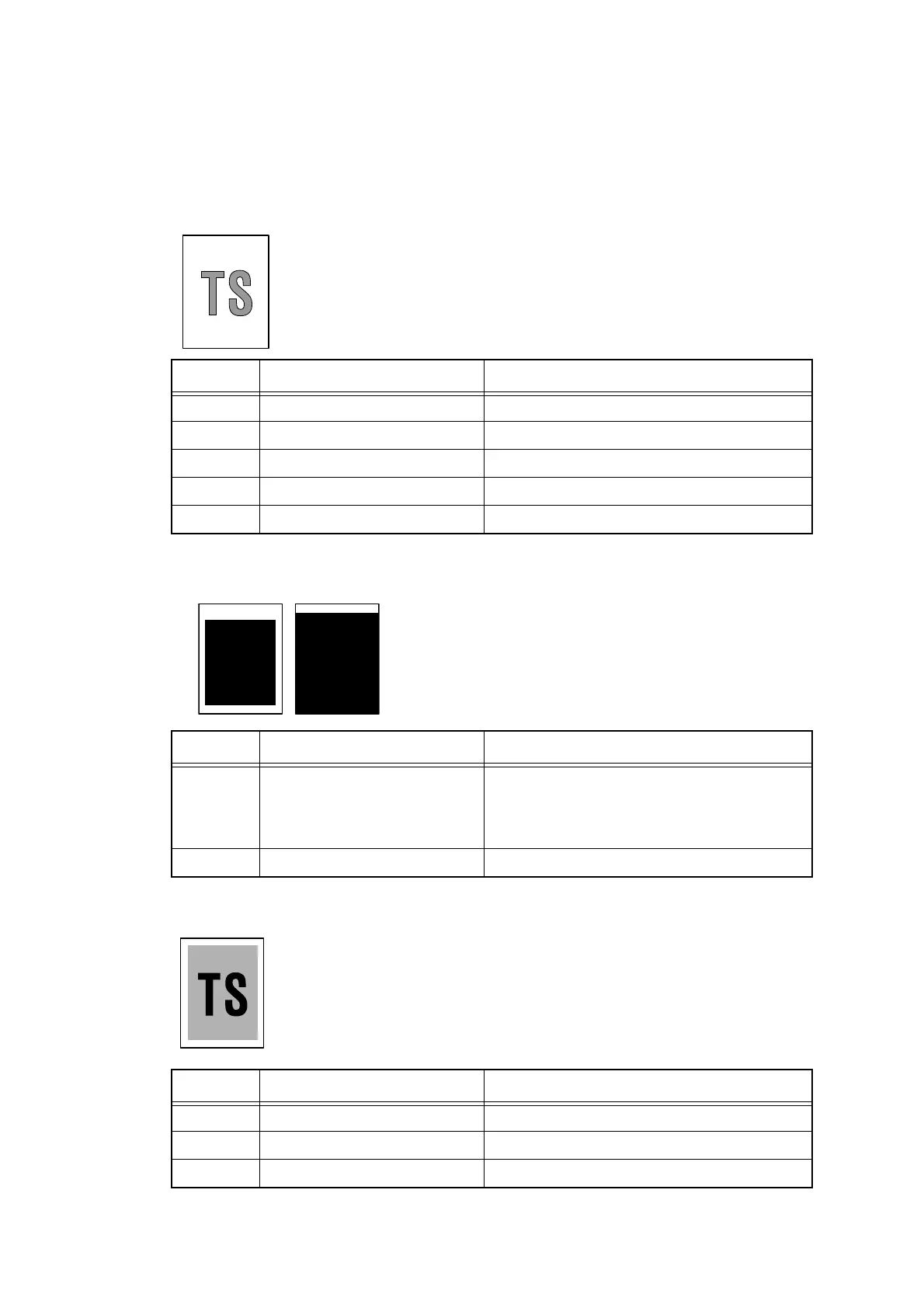

4.3.2 Troubleshooting image defect
Image defect related problems are user recoverable if following the User Check items.
If the same problem occurs again, follow each procedure in the order of the number described
in the Step column in the tables below.
■ Light
■ Faulty registration
■ Dark
<User Check>
- If the whole page is light, ink save mode may be ON. Turn OFF the ink
save mode.
- Adjust density by density adjustment.
- Perform head cleaning.
Step Cause Remedy
1 Old ink
Replace the Ink cartridge and clean the head.
2 Ink head failure Replace the ink head.
3 Power supply PCB failure Replace the power supply PCB.
4 Engine PCB failure Replace the engine PCB ASSY.
5 Main PCB failure Replace the main PCB ASSY.
<User Check>
- Check whether appropriate paper type is selected on
the driver.
Step Cause Remedy
1 Wrong write alignment value Refer to "Printing of the test pattern for the
print start position and adjustments" of
"1.4.18 Print adjustment (Function code 68)"
in Chapter 5 and reenter the value.
2 Dirt on print starting sensor Wipe the print starting sensor.
<User Check>
- Adjust concentration by concentration adjustment.
Step Cause Remedy
1 Ink head PCB failure Replace the ink head.
2 Engine PCB failure Replace the engine PCB ASSY.
3 Main PCB failure Replace the main PCB ASSY.
-

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
