Brother HL-S7000DN - 11.10 Size SW PCB ASSY;Size SW Spring

3-131
Confidential
11.10 Size SW PCB ASSY/Size SW Spring

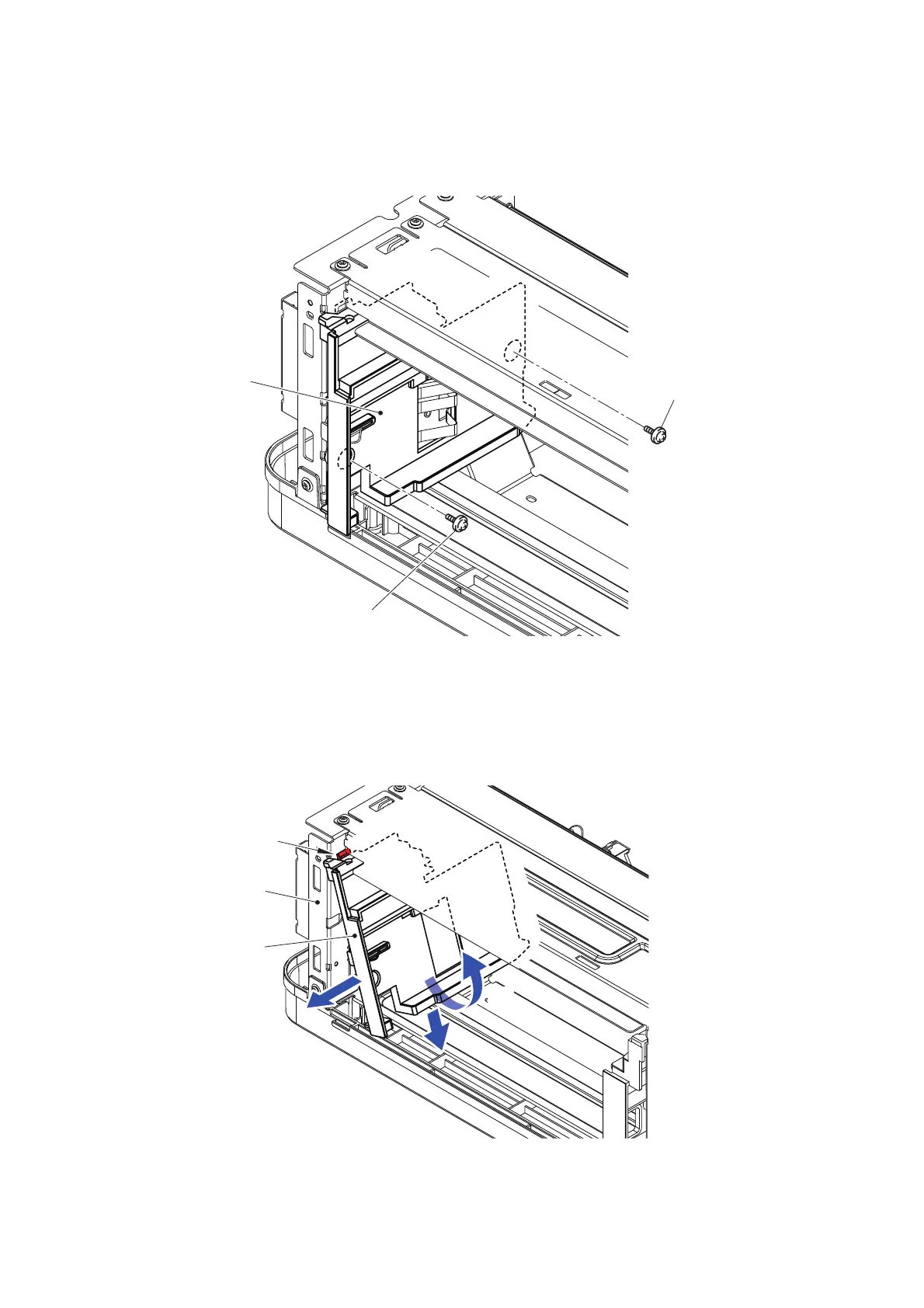

(1) Remove the two Taptite cup S M3x8 SR screws from the Tray guide R back.
Fig. 3-159
(2) Shift the Tray guide R back in the direction of the arrow 2a to release the Hook in the
direction of the arrows 2b and 2c in this order to remove the Tray guide R back from the
LT frame R.
Fig. 3-160
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR
Tray guide R back
<Back side>
Tray guide R back
2a
Hook
2c
2b
<Back side>
LT frame R
