4-20
Confidential
3.1 Draining Ink from Tube
(1) Enter the maintenance mode, and press the 1 and 8 buttons in this order.
"PlatenPosition" is displayed on the LCD.
(2) Press the button several times until "Needle" is displayed on the LCD, and then press
the button. "Insert" is displayed on the LCD.
(3) Press the button to display "Remove" on the LCD and press the OK button.
The data LED start blinking, and the needle is removed.
Fig. 4-10
(4) Remove the ink cartridge.
(5) Press the button several times until "Needle" is displayed on the LCD, and then press
the button. The machine
display "
Insert
" on the LCD and press the
OK
button.
(6) Turn the power OFF and ON.
(7) Enter the maintenance mode, and press the 1 and 7 buttons in this order. "Cartridge" is
displayed on the LCD.
(8) Press the button. "No Cartridge" is displayed on the LCD.
(9) Press the Go button. "NORMAL_P ALL" is displayed on the LCD.
(10) Press the 3 button. "POWER_P ALL" is displayed on the LCD.

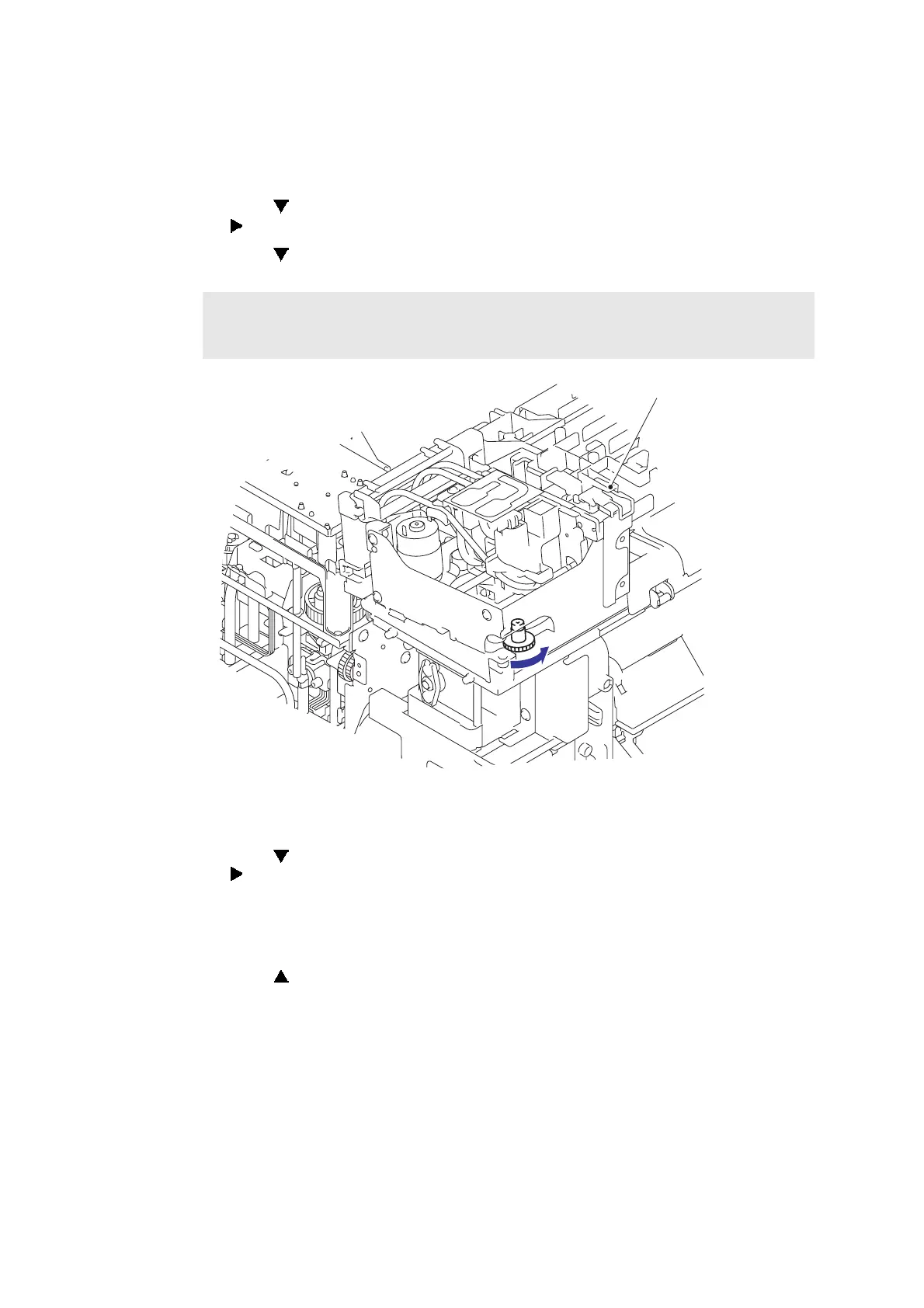

Note:
If the needle cannot be removed with the above maintenance mode, turn the gear
shown in the figure below in the arrow direction and remove the needle.
Ink refill unit
