Brother HL-S7000DN - 10.20 Ink Refill Unit

3-61
Confidential
10.20 Ink Refill Unit

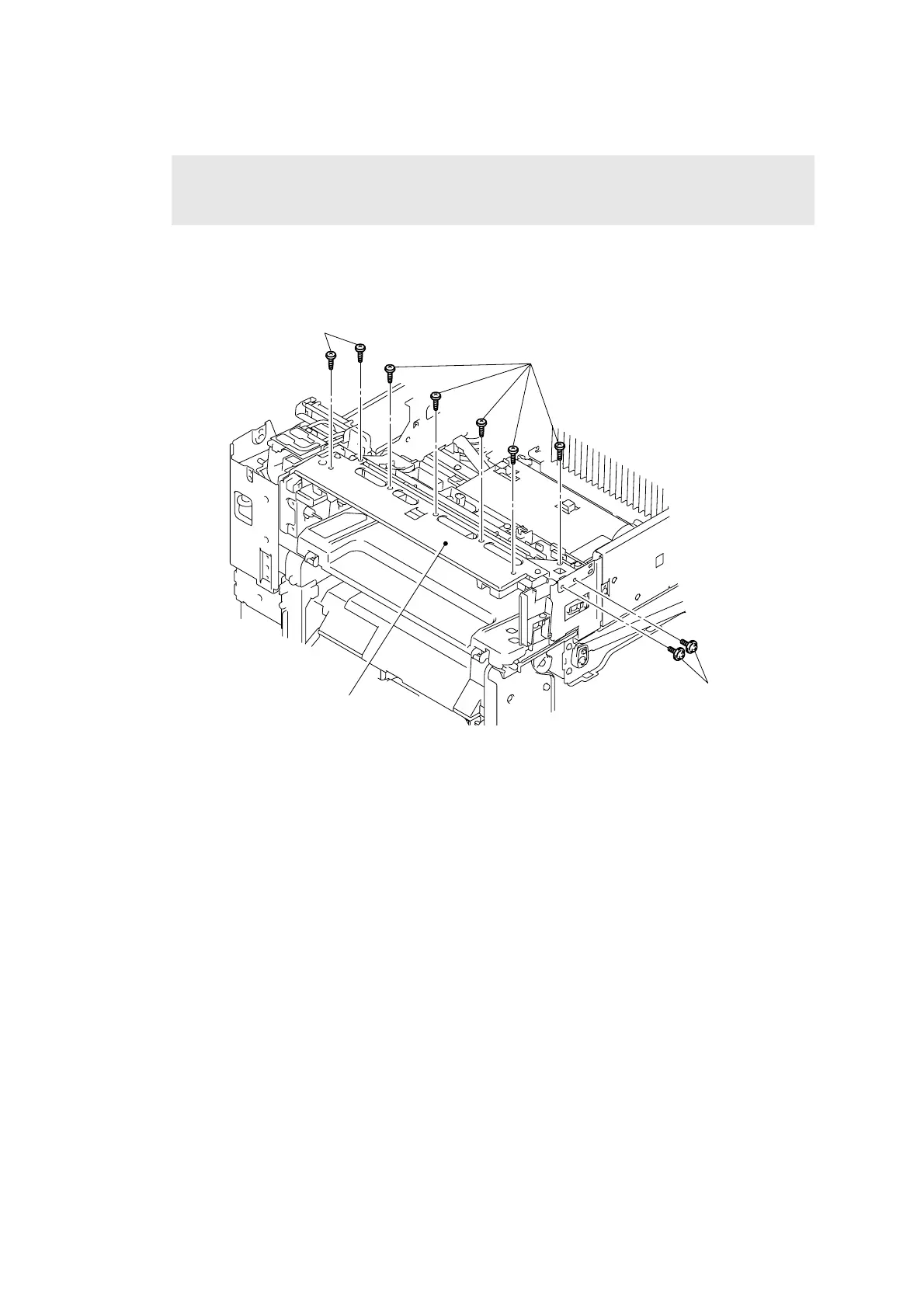

(1) Remove the seven Taptite bind B M4x10 screws.
(2) Remove the two Taptite cup S M3x6 SR screws.
Fig. 3-56
Note:
Be sure to execute Maintenance 17 and remove Ink and Pre-coat ink before perform the
replacement operation. (Refer to Chapter 5, "1.4.6 Purge operations (Function code 17))
Taptite bind B M4x10
Taptite bind B M4x10
Taptite cup S M3x6 SR
Refill frame upper
<Left side>
