3-152
Confidential
11.18 LT Bottom Cover/Rubber Pad
(1) Remove the Taptite cup S M3x6 SR screw to remove the FG harness.

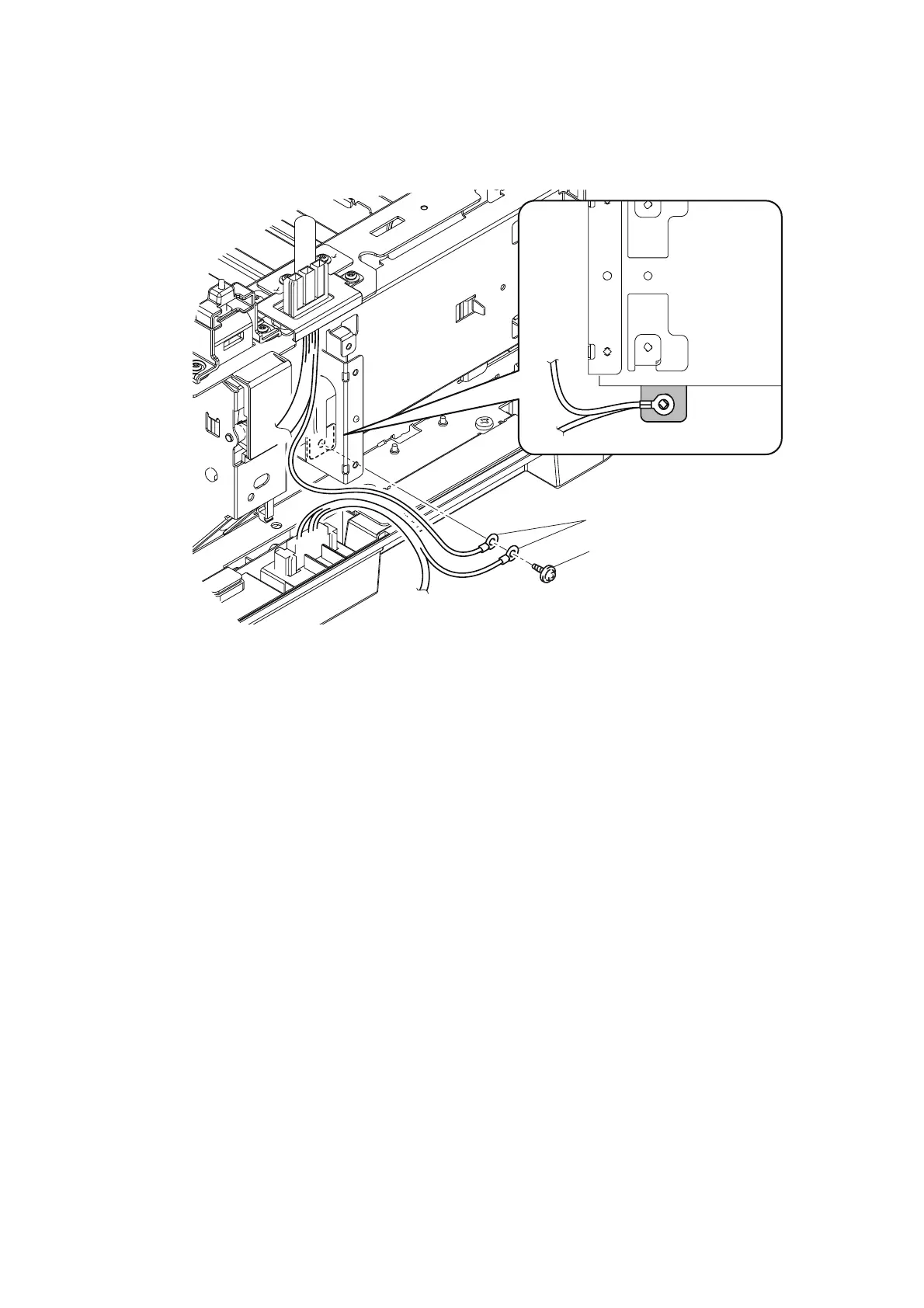

Fig. 3-196
Taptite cup S M3x6 SR
FG harness
<Front>
