3-153
Confidential

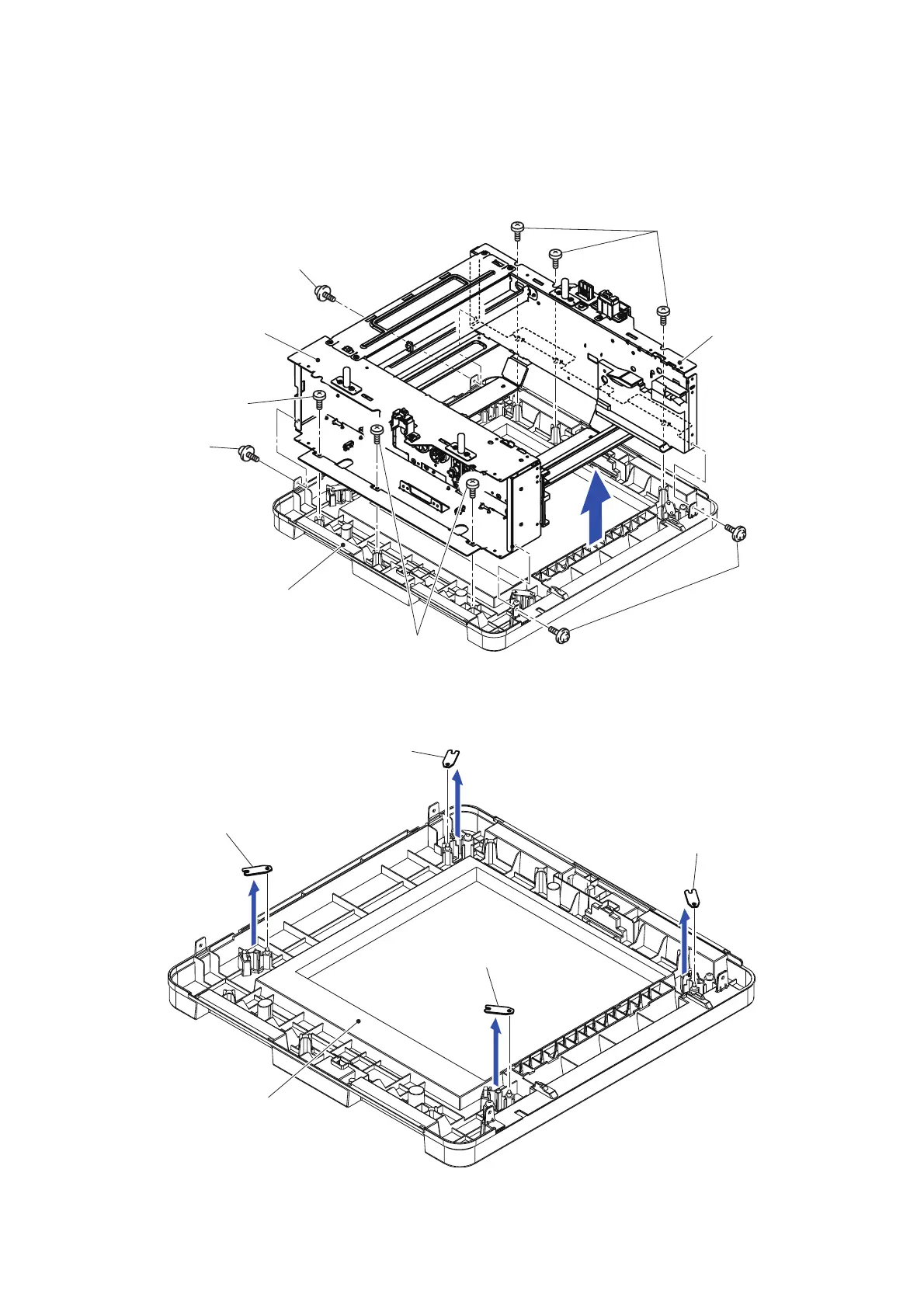

(2) Remove the three Taptite bind B M4x10 screws from the LT frame L.
(3) Remove the three Taptite bind B M4x10 screws from the LT frame R.
(4) Remove the four Taptite cup S M3x6 SR screws to remove the LT frame unit from the LT
bottom cover.
Fig. 3-197
(5) Remove the four Bottom plate from the LT bottom cover.
Fig. 3-198
LT frame R
Taptite cup S M3x6 SR
LT frame L
LT bottom cover
Taptite bind B M4x10
Taptite cup S
Taptite bind B M4x10
Taptite cup S
<Front>
M3x6 SR
M3x6 SR
Taptite bind B M4x10
LT bottom cover
Bottom plate
Bottom plate
Bottom plate
Bottom plate
<Front>
