2.1.2 MP paper feeding kit

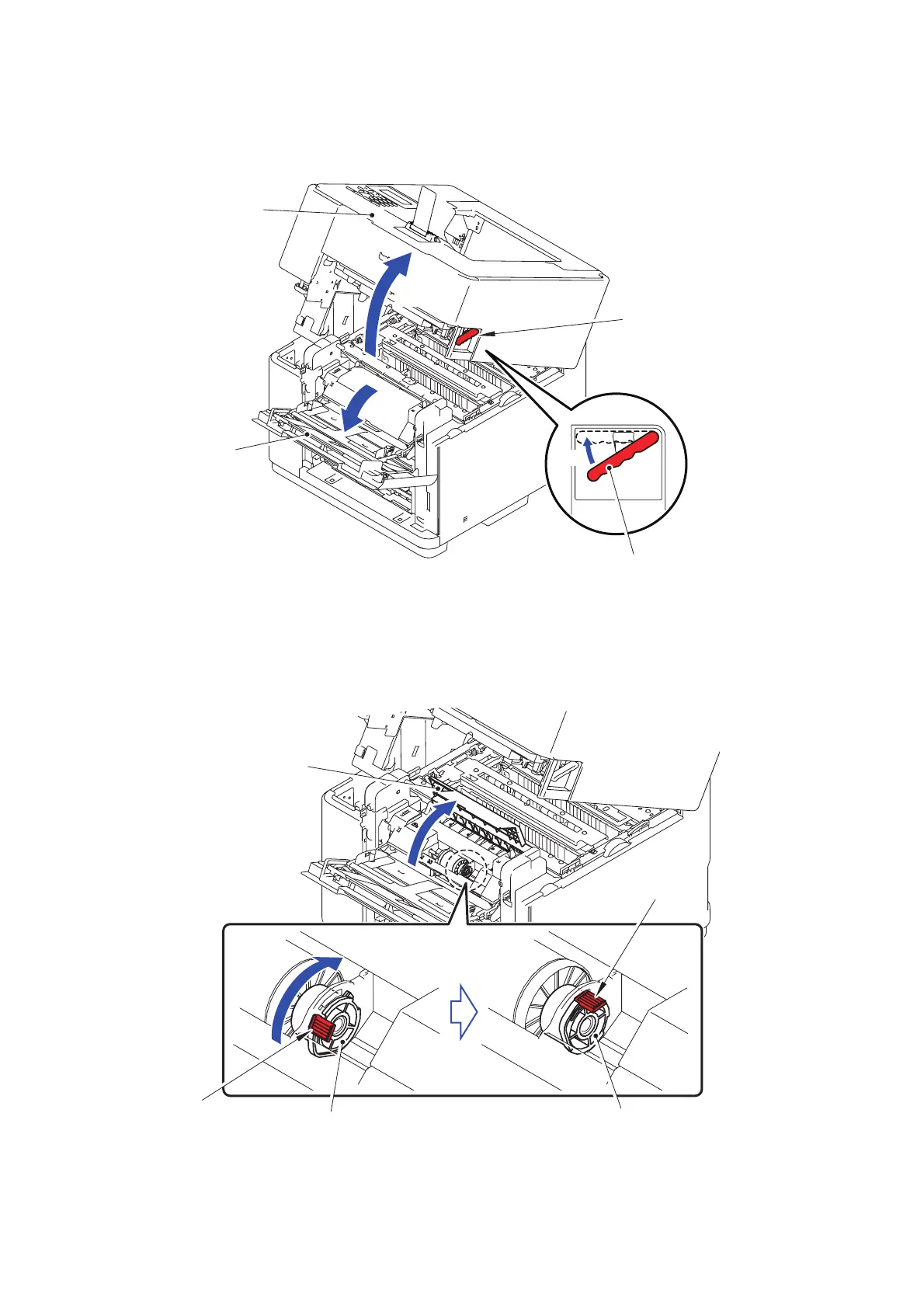

(1) Pull the Open lever and open the Top cover. Open the MP cover.
Fig. 7-5
(2) Open the Regi outer chute.
(3) Hold the "A" and rotate the Bearing R to the position shown in the figure.
Fig. 7-6
Top cover
MP cover
Open lever
Open lever
1a
1c
1b
“A”
Regi outer chute
“A”
Bearing R
Bearing R
