11.3 Separation Roller/Pick-up Roller
(1) Release the Hook of the Pick-up roller to remove the Pick-up roller as rotating it in the
direction of the arrow 1a.
(2) Release the Hook of the Separation roller to remove the Separation roller as rotating it in
the direction of the arrow 2a.

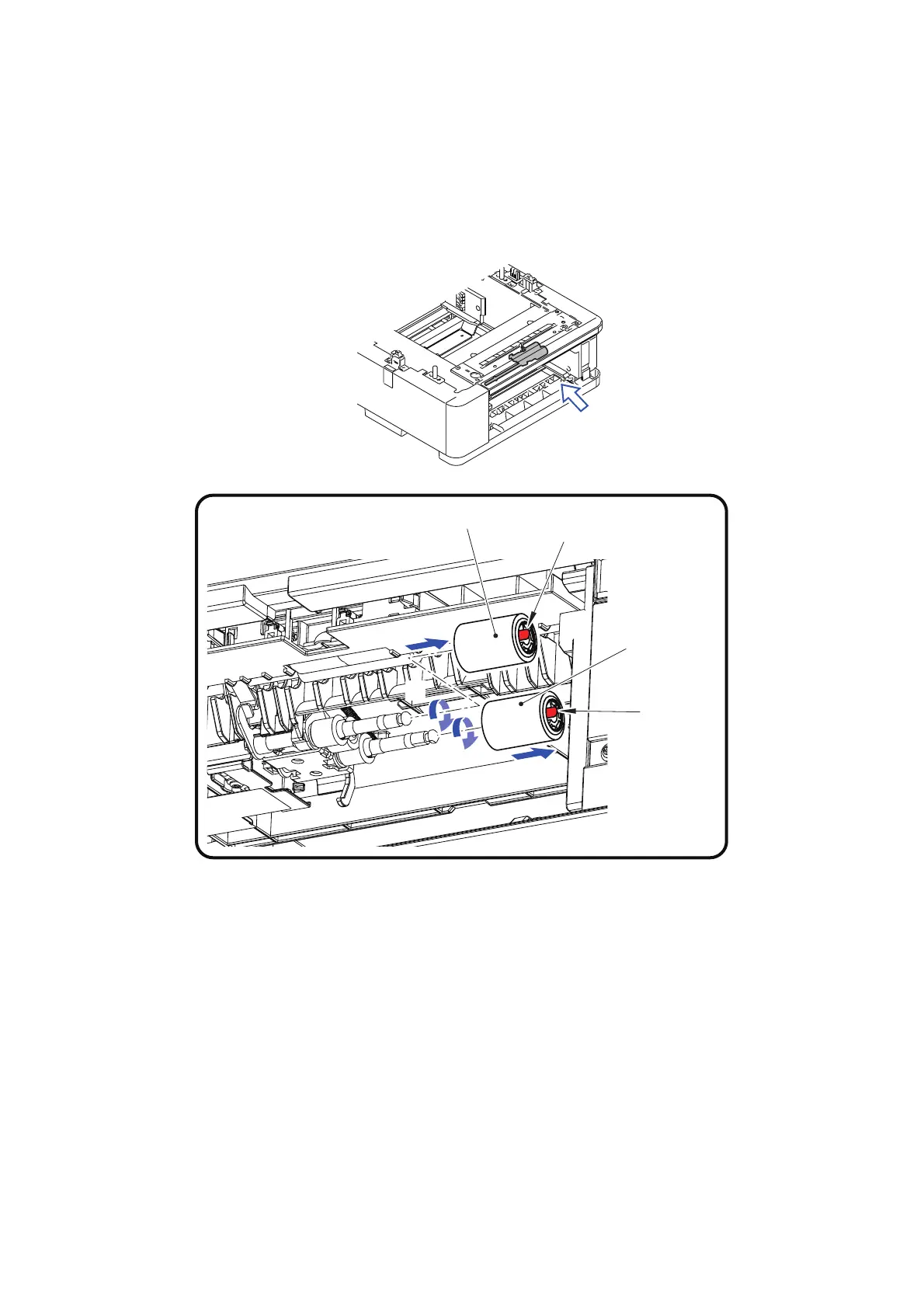

Fig. 3-148
Hook
A view
<A view>
Hook
1a
2a
1b
2b
Pick-up roller
Separation roller
