12.4 Stacker Tray A/Stacker Tray B/Stacker Tray C/
Stacker Tray Under A/Stacker Tray Under B/
Stacker Tray Under C/Eject Stopper Top
(1) Remove the two Taptite cup B M3x6 screws from the Stacker tray ASSY.
(2) Release the two Bosses A of the Stacker tray ASSY.
(3) Release the two Boss B to remove the Stacker tray ASSY from the Stacker tray guide M.

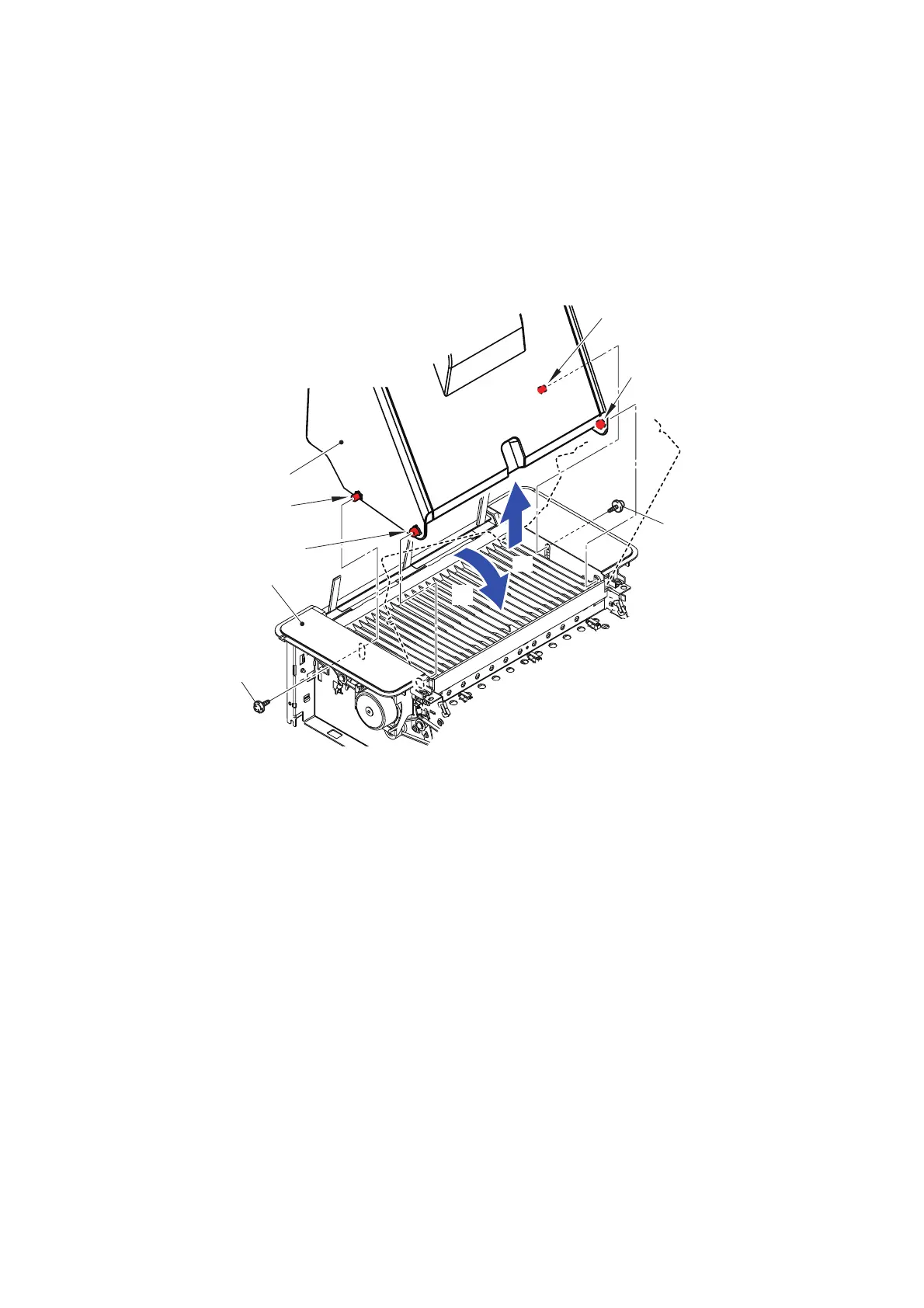

Fig. 3-209
Boss B
Stacker tray ASSY
Taptite cup B M3x6
Stacker tray guide M
Taptite cup B M3x6
Boss A
2
3
Boss A
Boss B
