Brother HL-S7000DN - Page 327

3-159
Confidential
(3) Remove the two Taptite cup B M3x8 screws from the Stacker front under.
(4) Release the three Hooks of the Stacker front under and the two Hooks of the Stacker eject
top cover to remove the Stacker eject top cover from the Stacker front under.

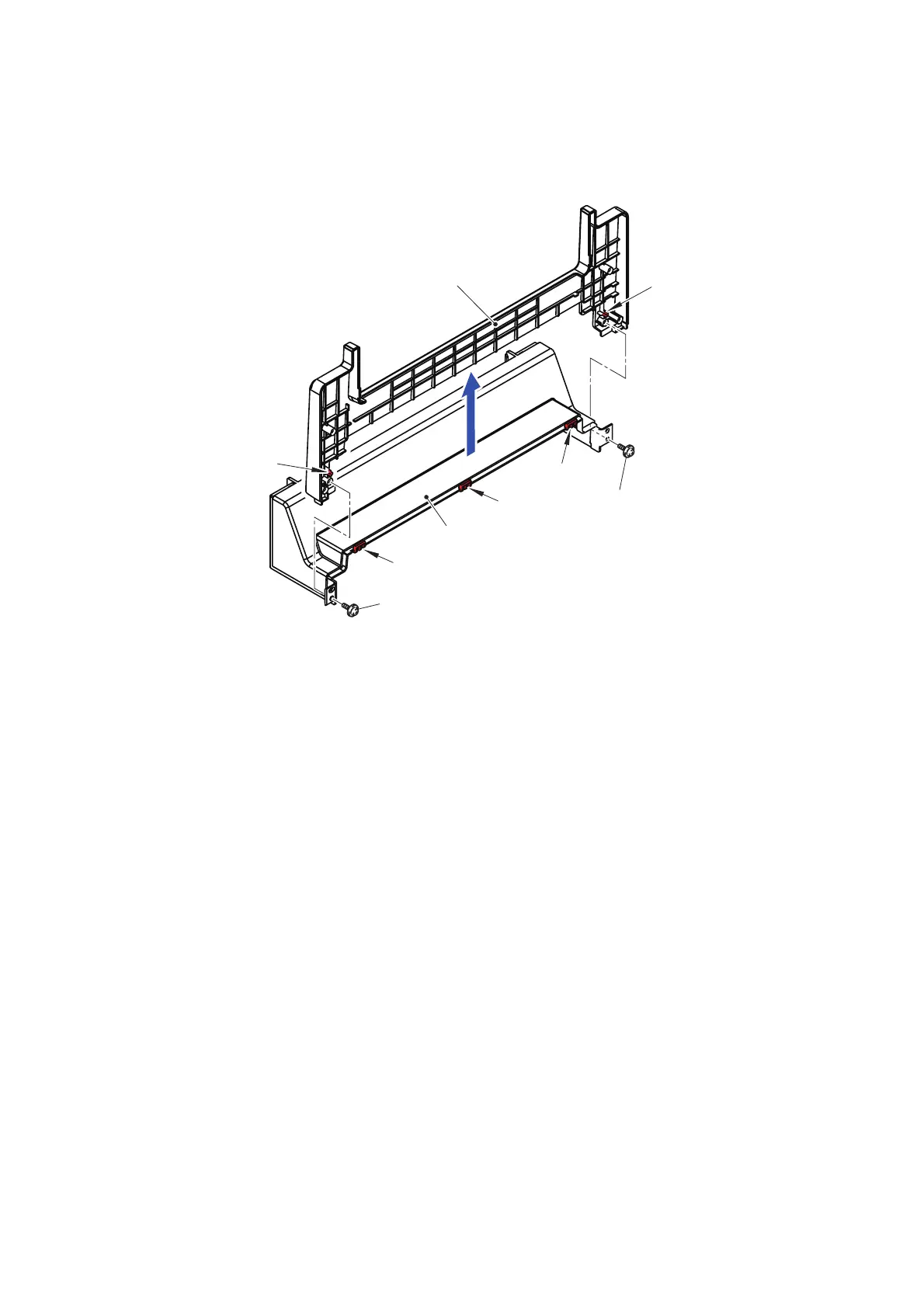

Fig. 3-208
Stacker eject top cover
Hook
Taptite cup B M3x8
Taptite cup B M3x8
Hook
Hook
Hook
Hook
Stacker front under
