10.10 Top Cover ASSY

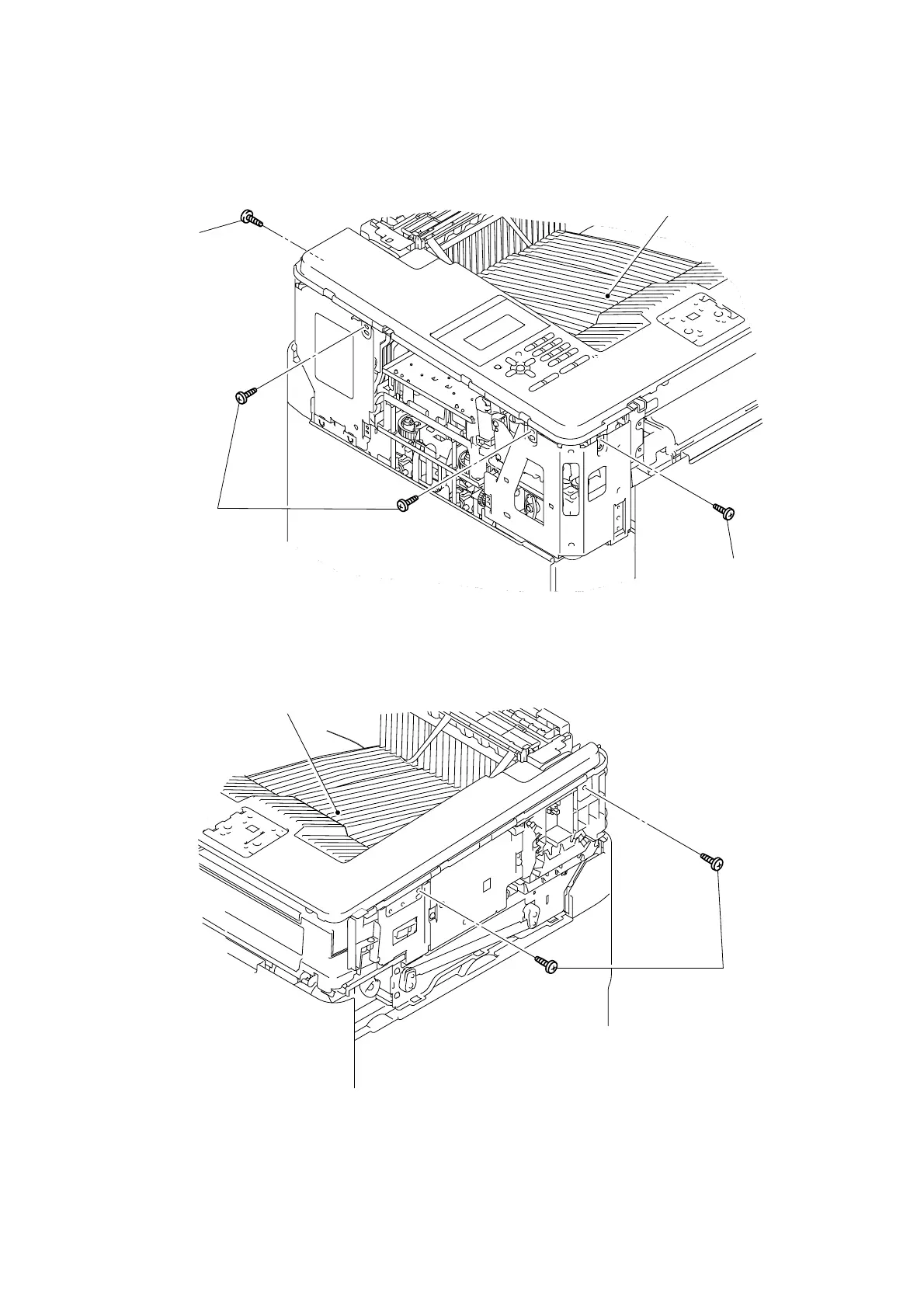

(1) Remove the six Taptite bind B M4x10 screws.
Fig. 3-21
Fig. 3-22
Taptite bind B M4x10
Taptite bind B
Taptite bind B
Top cover ASSY
M4x10
M4x10
<Front>
Top cover ASSY
<Front>
Taptite bind B M4x10
