3-39
Confidential
(2) Remove the two Taptite cup S M3x6 SR screws.

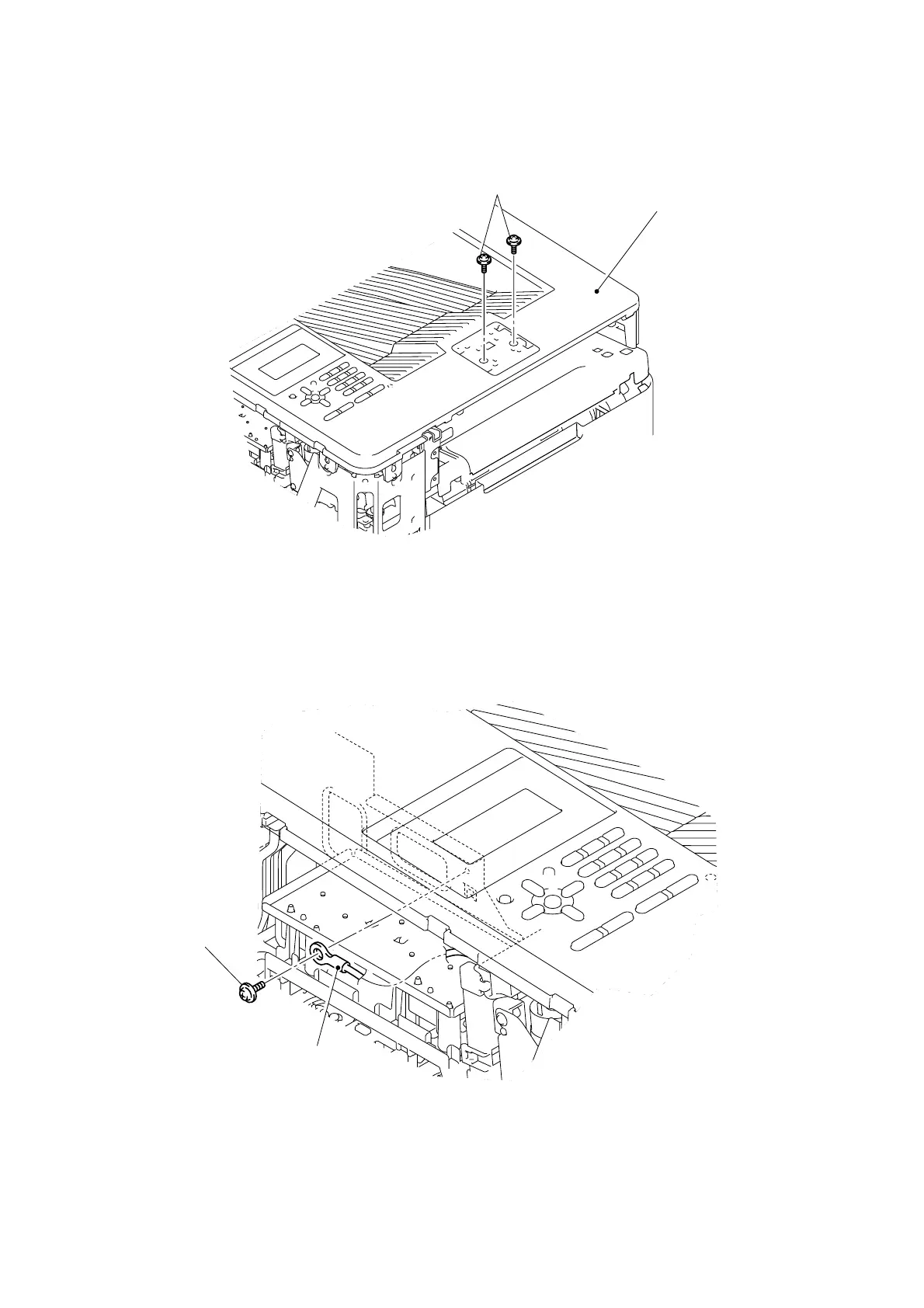

Fig. 3-23
(3) Remove the Taptite cup S M3x6 SR screw to remove the Earth harness.
Fig. 3-24
Taptite cup S M3x6 SR
Top cover ASSY
<Front>
Taptite cup S M3x6 SR
Earth harness
