Brother HL-S7000DN Service Manual

3-127
Confidential
11.6 LT Relay PCB ASSY

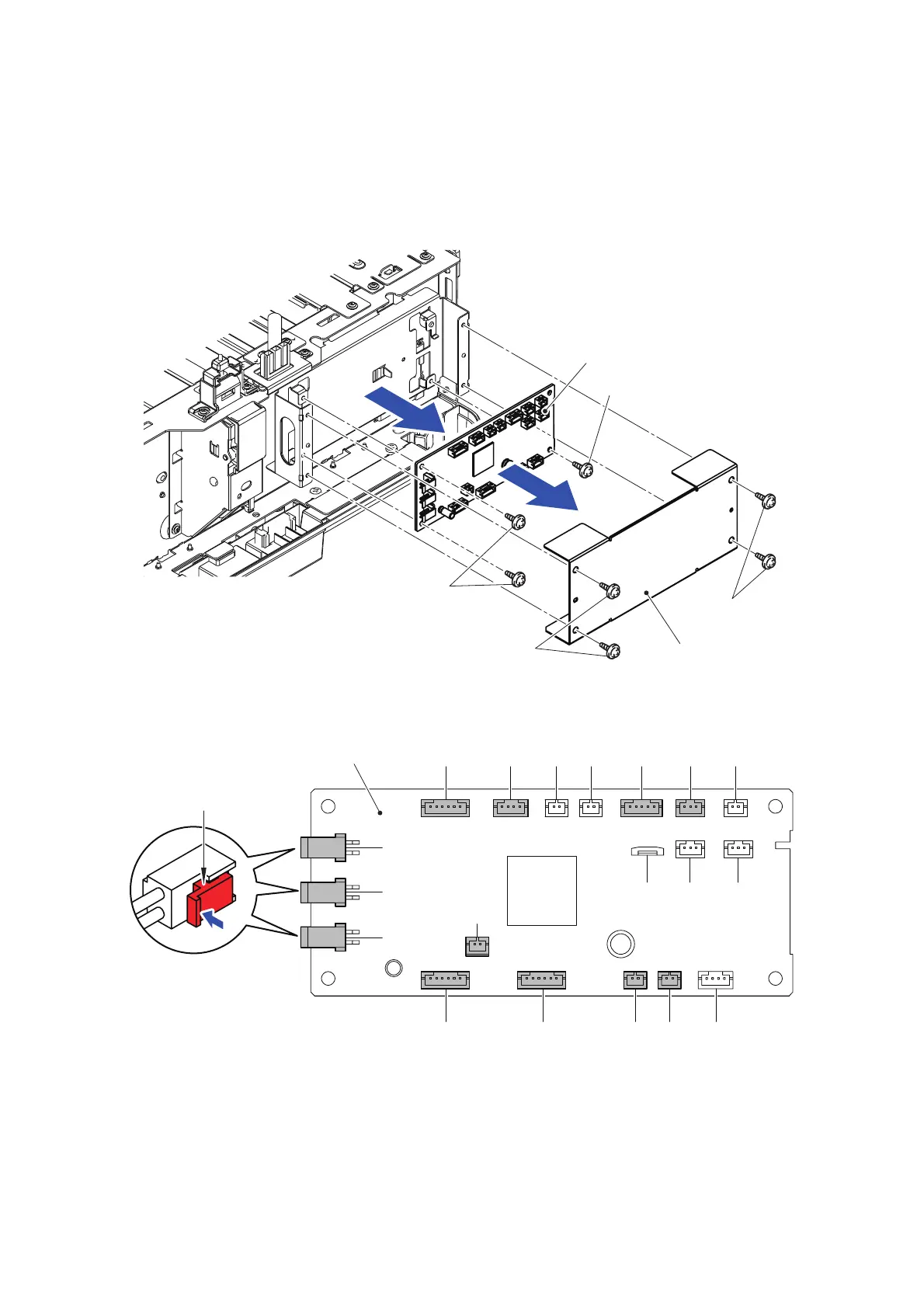

(1) Remove the four Taptite cup S M3x6 SR screws to remove the LT relay shield plate.
(2) Disconnect the all Connectors from the LT relay PCB ASSY.
(3) Remove the three Taptite cup S M3x6 SR screws to remove the LT relay PCB ASSY.
Fig. 3-152
Fig. 3-153
Taptite cup S
LT relay shield plate
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
<Back side>
3
1
LT relay PCB ASSY
M3x6 SR
Hook
CN17
CN18
CN19
CN16 CN13
CN9
CN8
CN3
CN2CN6
CN1CN4CN5CN10CN11CN12CN14
CN15
CN7
LT relay PCB ASSY

Brother HL-S7000DN Specifications

General

Color	No
Duplex printing	Yes
Maximum duty cycle	275000 pages per month
Number of print cartridges	-
Page description languages	BR-Script 3, PCL 6, PostScript 3
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	100 ppm
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Plain paper, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Sound power level (standby)	40 dB
Sound power level (printing)	64 dB
Total input capacity	500 sheets
Maximum input capacity	1100 sheets
Maximum number of input trays	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Brother iPrint & Scan
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	30 W
Power consumption (printing)	130 W
Operating temperature (T-T)	18 - 33 °C
Operating relative humidity (H-H)	20 - 80 %
Display	LCD
Product color	Black, White
Market positioning	Business
Package weight	52000 g
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	472 mm
Width	478 mm
Height	484 mm
