3-108
Confidential
10.29 Power Supply PCB ASSY

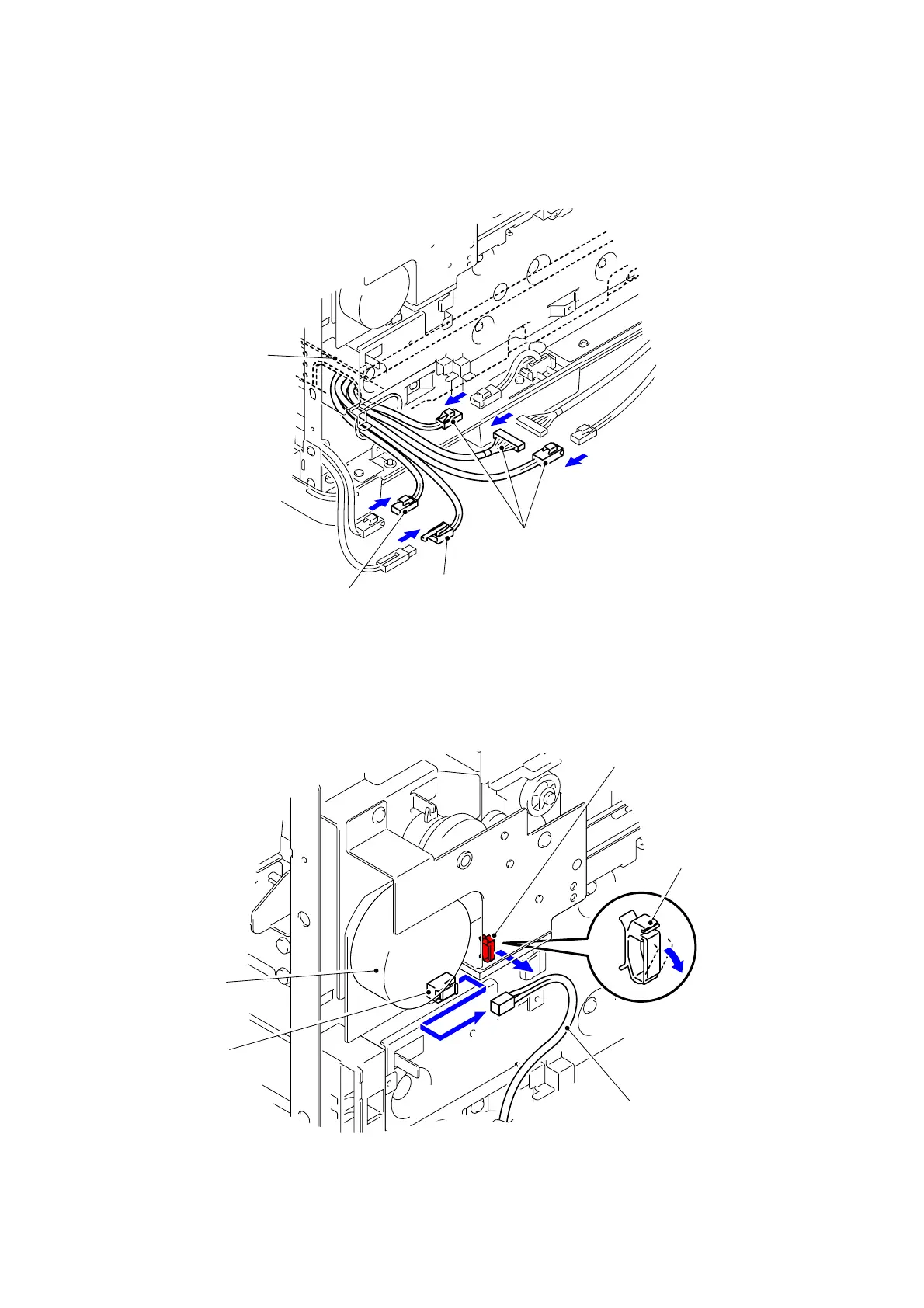

(1) Disconnect the five Connectors from the Power supply PCB ASSY.
Fig. 3-125
(2) Disconnect the Connector from the Paper feed motor to remove the Harness from the
Clamp.
Fig. 3-126
Power supply PCB ASSY
Connector
Connector
Connector
Connector
Harness
Clamp
Clamp
Paper feed motor
