Brother HL-S7000DN - 10.26 Main PCB ASSY

3-103
Confidential
10.26 Main PCB ASSY

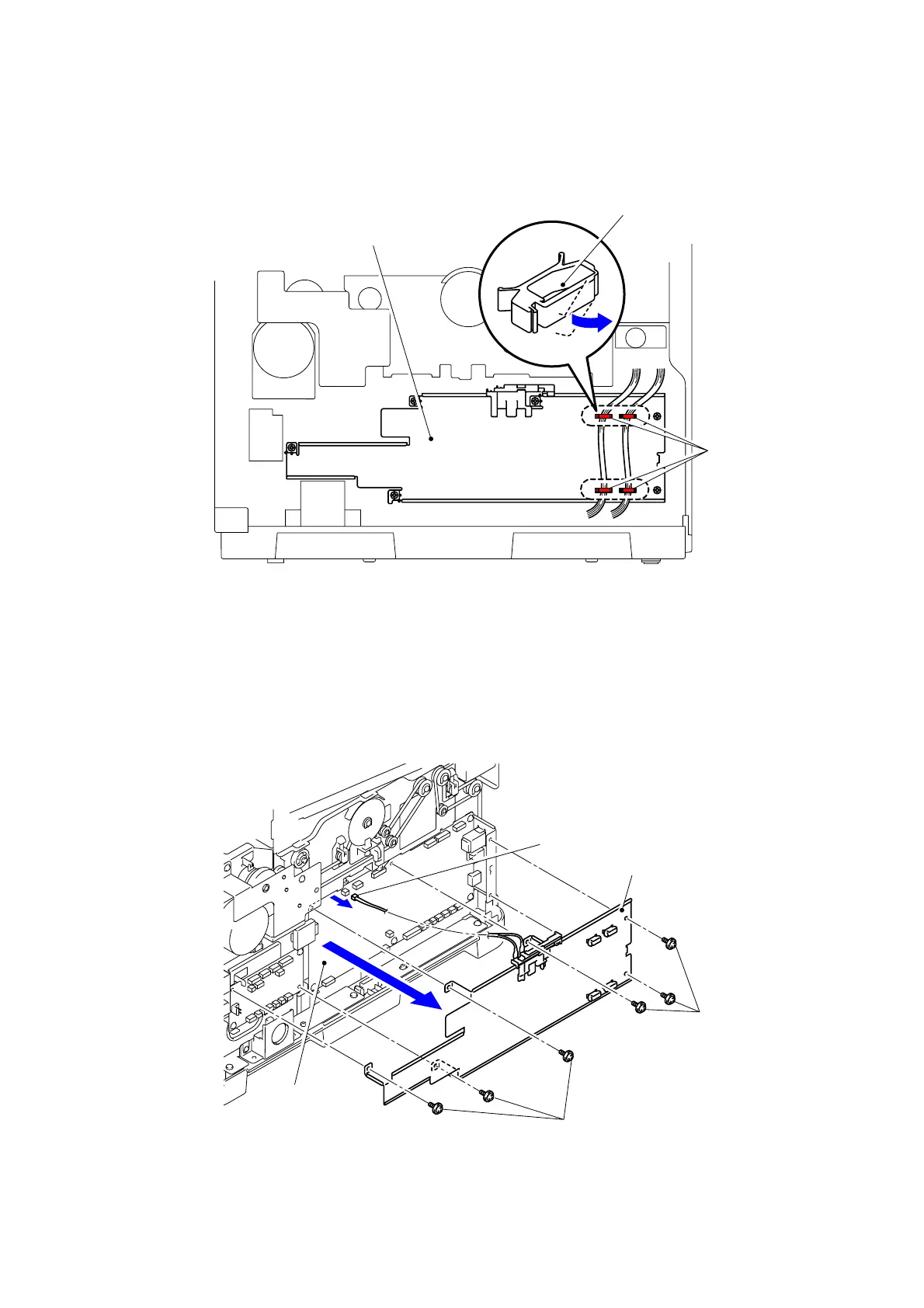

(1) Remove the two Harnesses from the Clamp of the Main PCB shield plate.
Fig. 3-116
(2) Remove the six Taptite cup S M3x6 SR screws to remove the Main PCB shield plate from
the Main frame.
(3) Disconnect the Connector from the Main PCB shield plate on the Main PCB ASSY.
Fig. 3-117
Clamp
Main PCB shield plate
<Front>
<Back side>
Clamp
Taptite cup S
Taptite cup S M3x6 SR
Main PCB shield plate
Connector
M3x6 SR
Main PCB ASSY
<Right side>
