3-104
Confidential

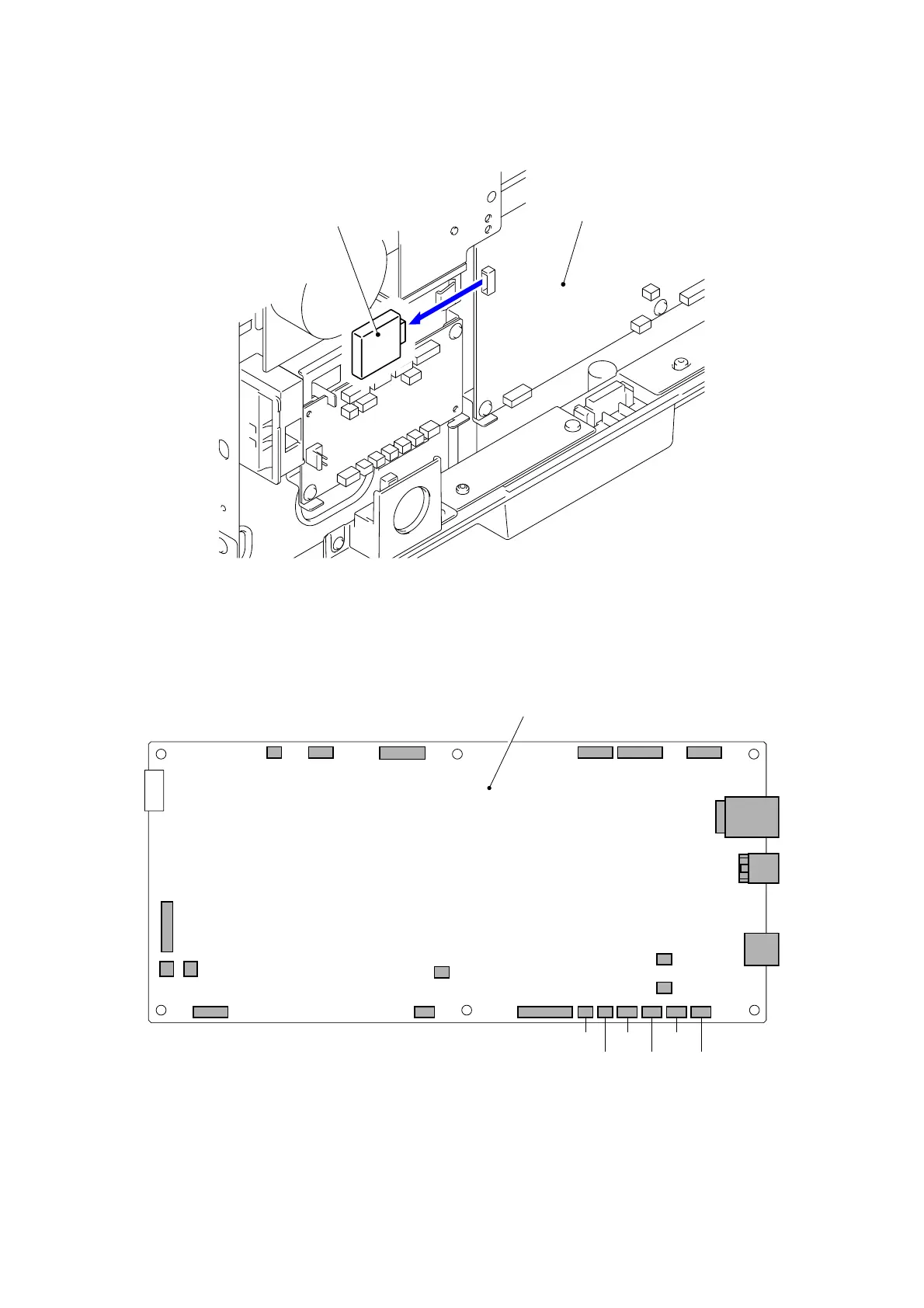

(4) Remove the USB storage memory from the Main PCB ASSY.
Fig. 3-118
(5) Disconnect the all Connectors from the Main PCB ASSY.
Fig. 3-119
Main PCB ASSY
<Right side>
USB storage memory
Main PCB ASSY
CN30
CN34
CN32
CN33
CN31CN24CN19CN14CN11CN35
CN4
CN25CN18
CN29CN22CN17
CN15
CN13CN5
CN10
CN2
CN1
CN7
CN27
CN26
