3-105
Confidential
(6) Remove the four Taptite cup S M3x6 SR screws to remove the Main PCB ASSY.

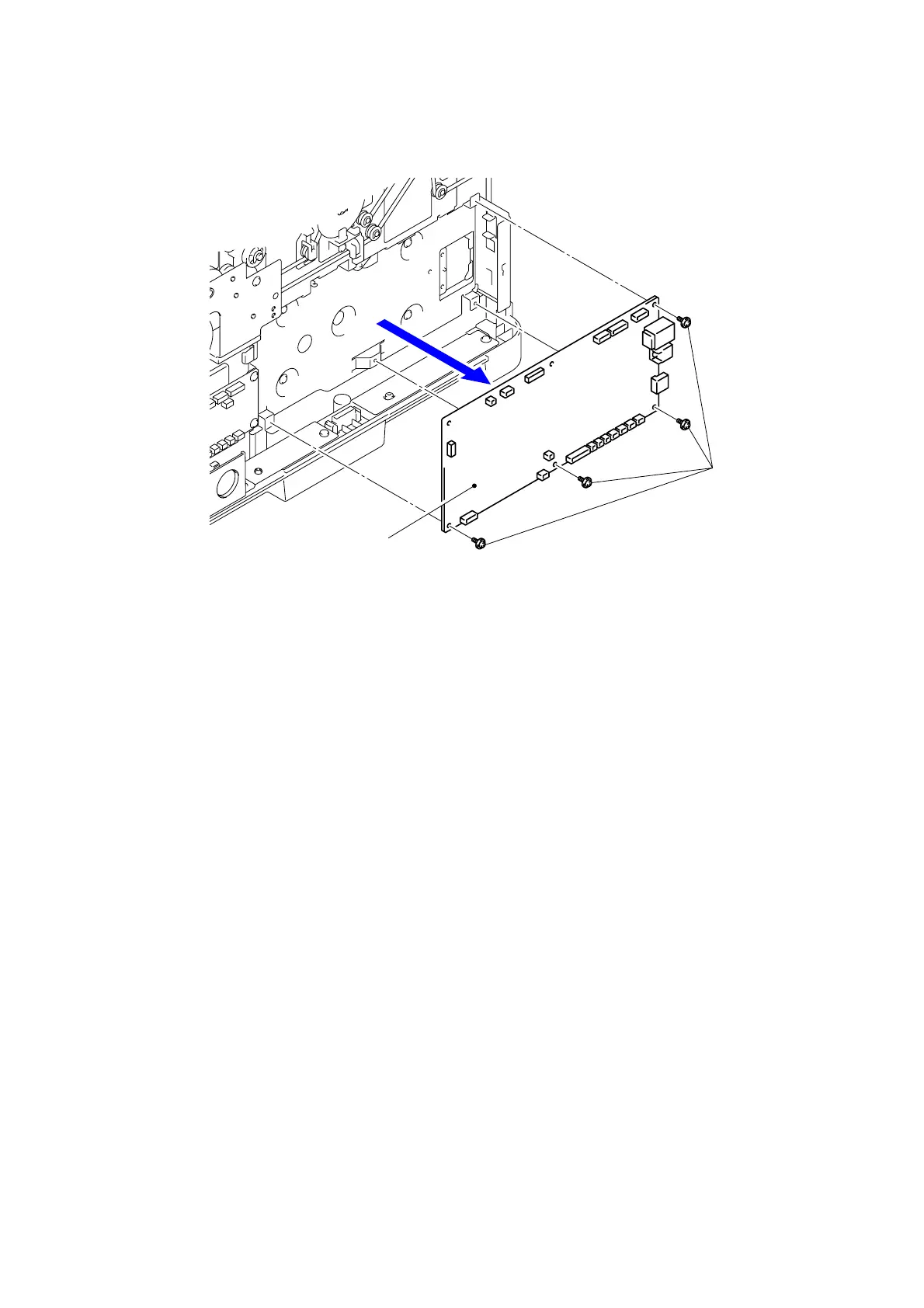

Fig. 3-120
Main PCB ASSY
Taptite cup S
M3x6 SR
