10.3 Eject Stopper ASSY

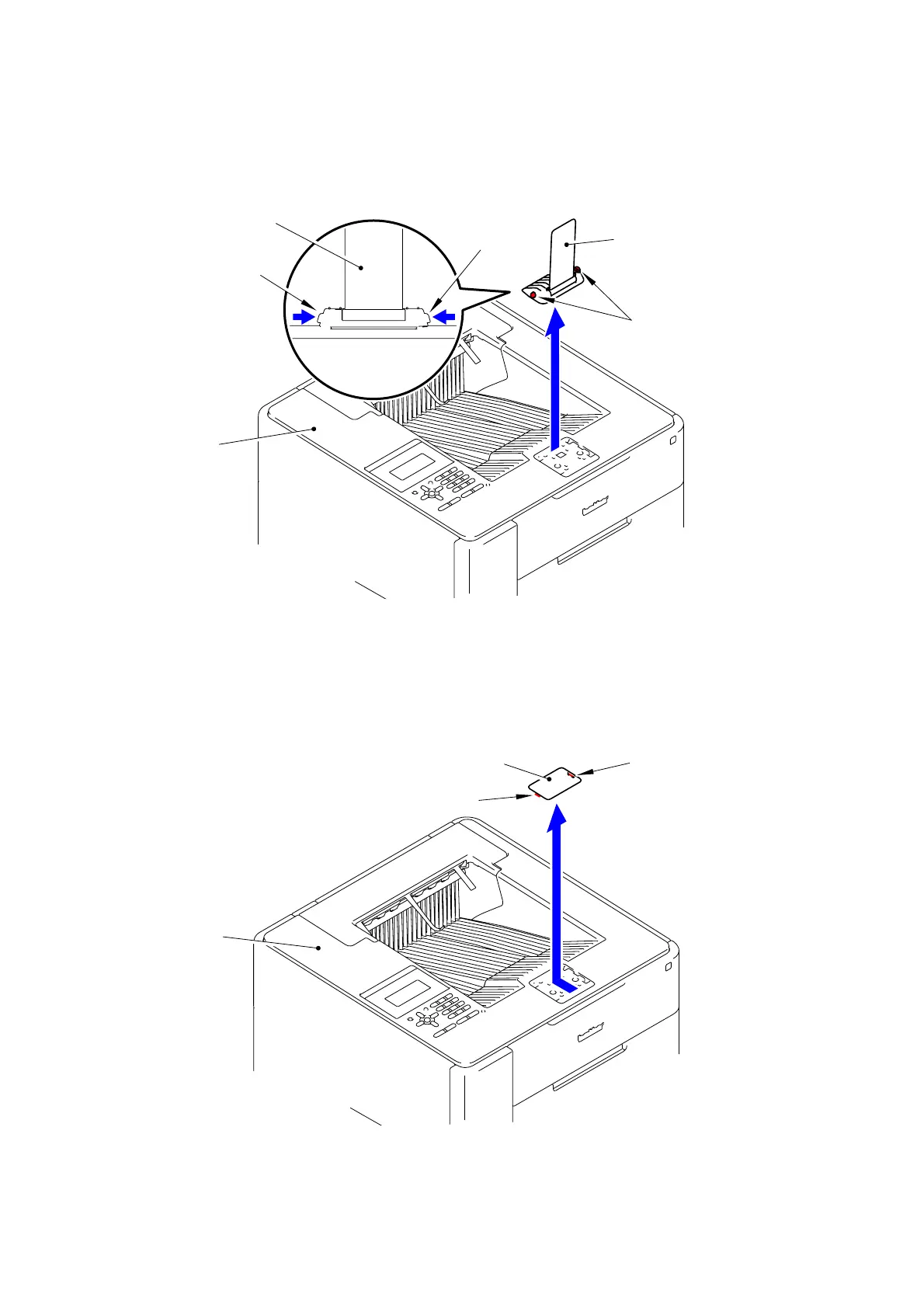

(1) Remove the Eject stopper ASSY as pressing the Buttons at the both sides of the Eject
stopper ASSY.
Fig. 3-4
(2) Slide the Eject stopper slide cover to the center and release the two Hooks to remove the
Eject stopper slide cover from the Top cover.
Fig. 3-5
Eject stopper ASSY
Button Eject stopper ASSY
Button
Top cover
<Front>
Button
Eject stopper slide cover
Hook
Top cover
Hook
<Front>
