12.3 Stacker Eject Top Cover/Stacker Front Under
(1) Remove the four Taptite cup B M3x8 screws from the Stacker eject top cover.
(2) Remove the Stacker front under and Stacker eject top cover from the Stacker paper eject
ASSY.

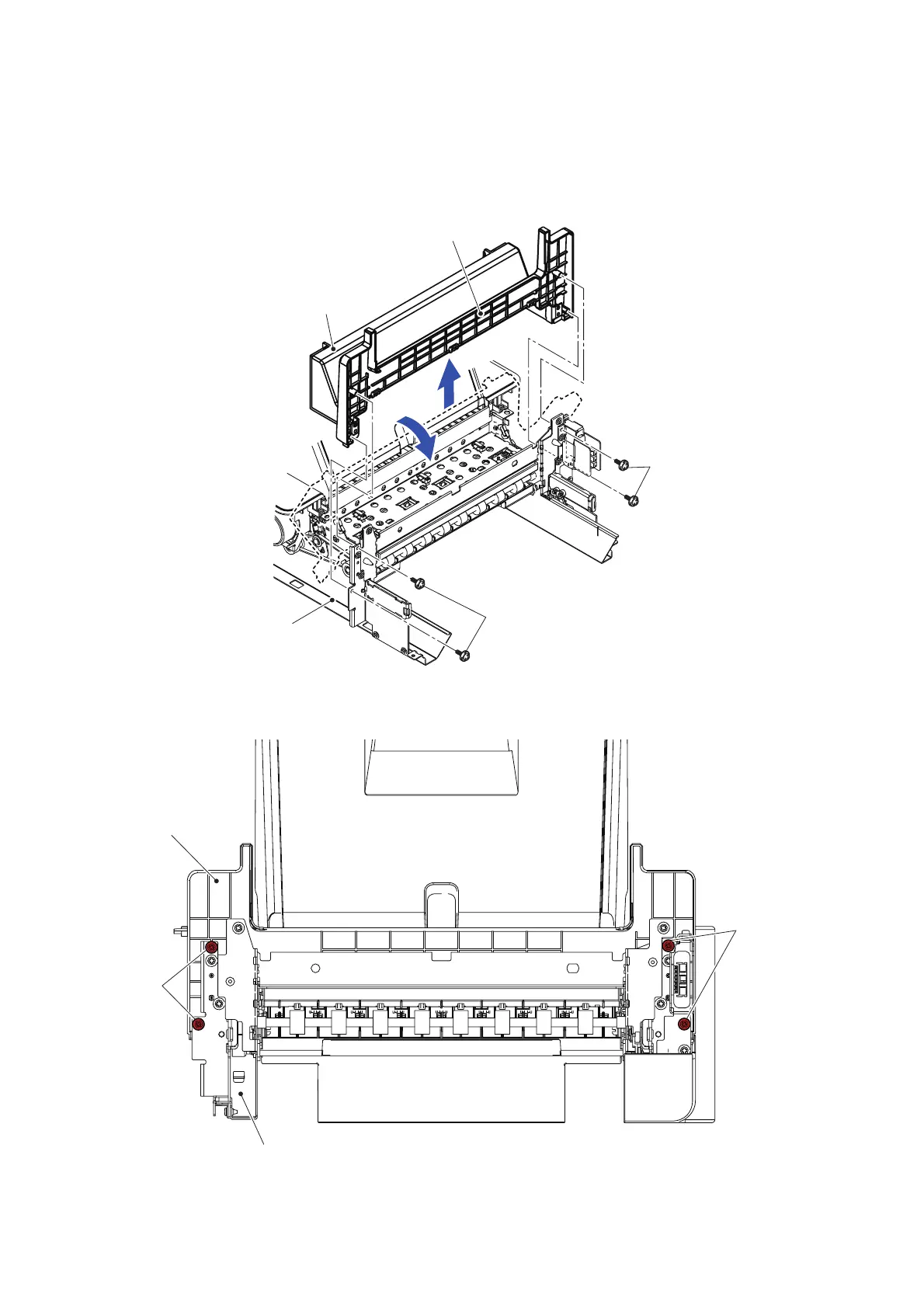

Fig. 3-206
Fig. 3-207
Stacker eject top cover
Stacker front under
Taptite cup B M3x8
Stacker paper eject ASSY
2a
2b
<Left side>
Taptite cup B M3x8
Taptite
cup B M3x8
Stacker eject top cover
Taptite
cup B
M3x8
Stacker paper eject ASSY
