3-157
Confidential

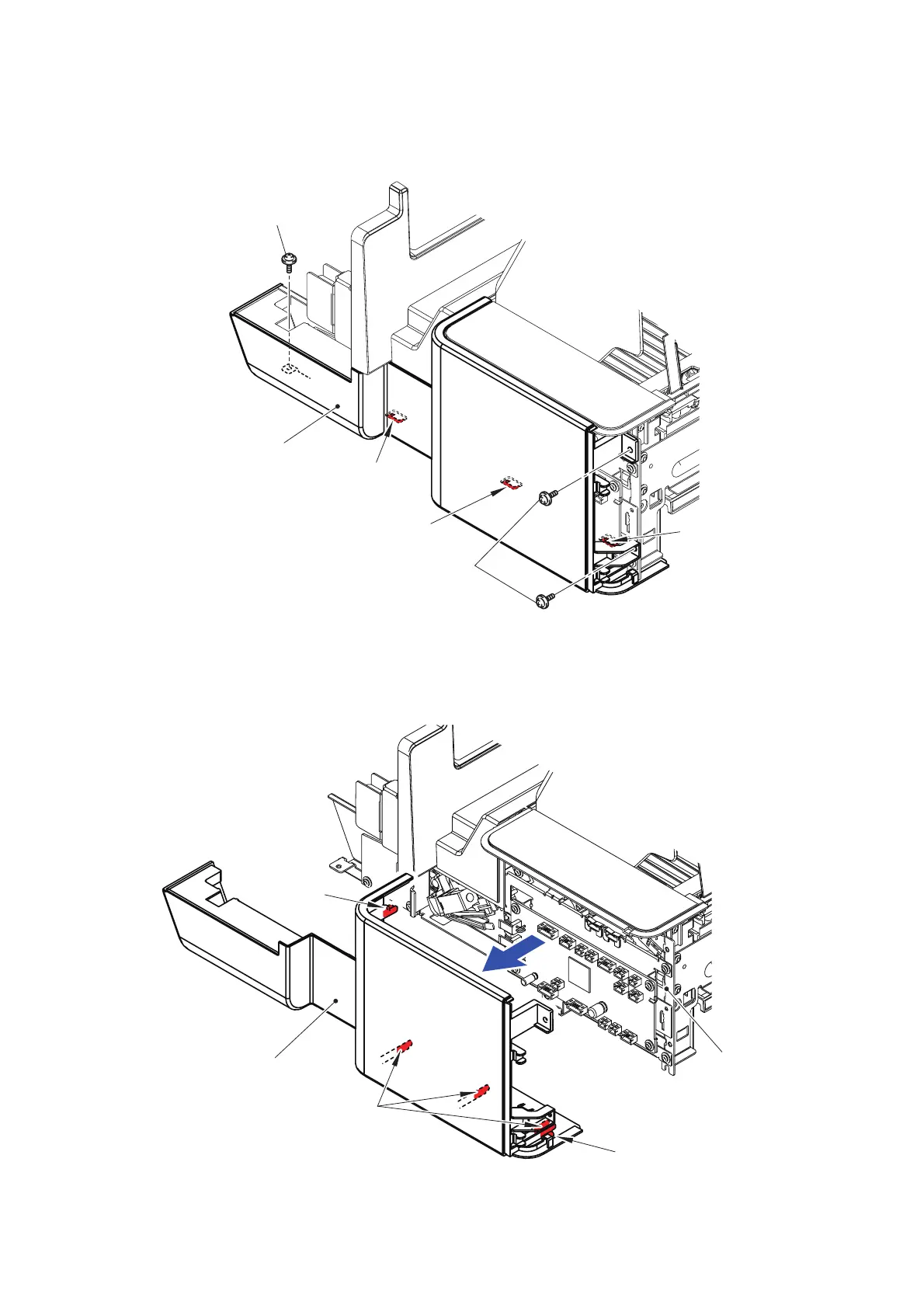

(5) Remove the three Taptite cup S M3x6 SR screws from the Stacker side R.
(6) Release the three Hooks.
Fig. 3-204
(7) Press the bottom surface of the cover to release the one Boss, and release the four
Hooks to remove the Stacker side R from the Stacker frame R.
Fig. 3-205
Hook
Taptite cup S M3x6 SR
Hook
Taptite cup S M3x6 SR
<Right side>
Hook
Stacker side R
Stacker side R
Hook
Boss
Hook
Stacker frame R
<Right side>
