Brother HL-S7000DN - Page 300

3-132
Confidential

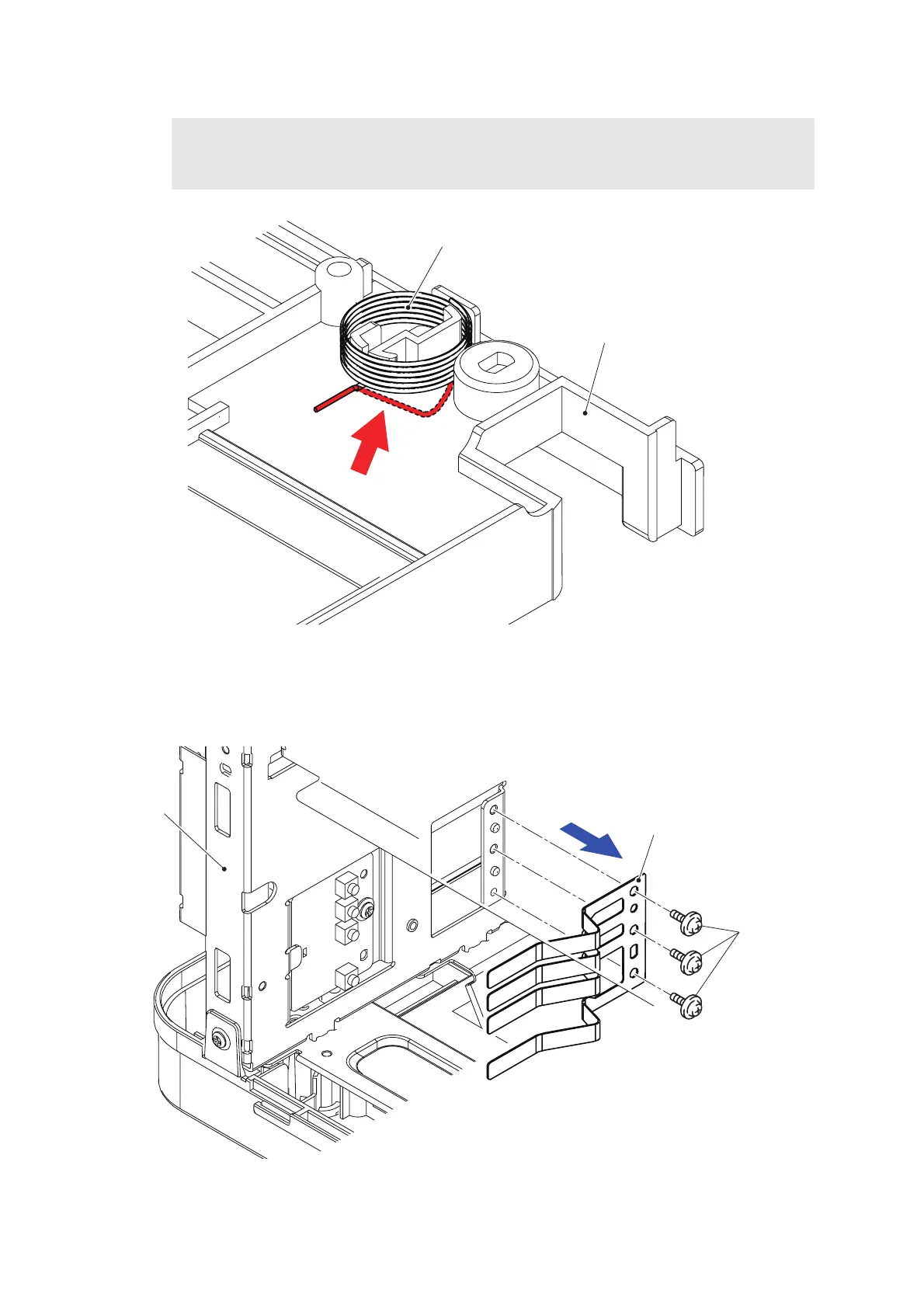

Fig. 3-161
(3) Remove the three Taptite cup S M3x8 SR screws to remove the Size SW spring from the
LT frame R.
Fig. 3-162
Assembling Note:
The Guide spring easily comes off. When it comes off, be sure to install it at the position as
shown in the figure below.
Tray guide R back
Guide spring
Size SW spring
Taptite cup
<Back side>
LT frame R
S M3x8 SR
