3-98
Confidential

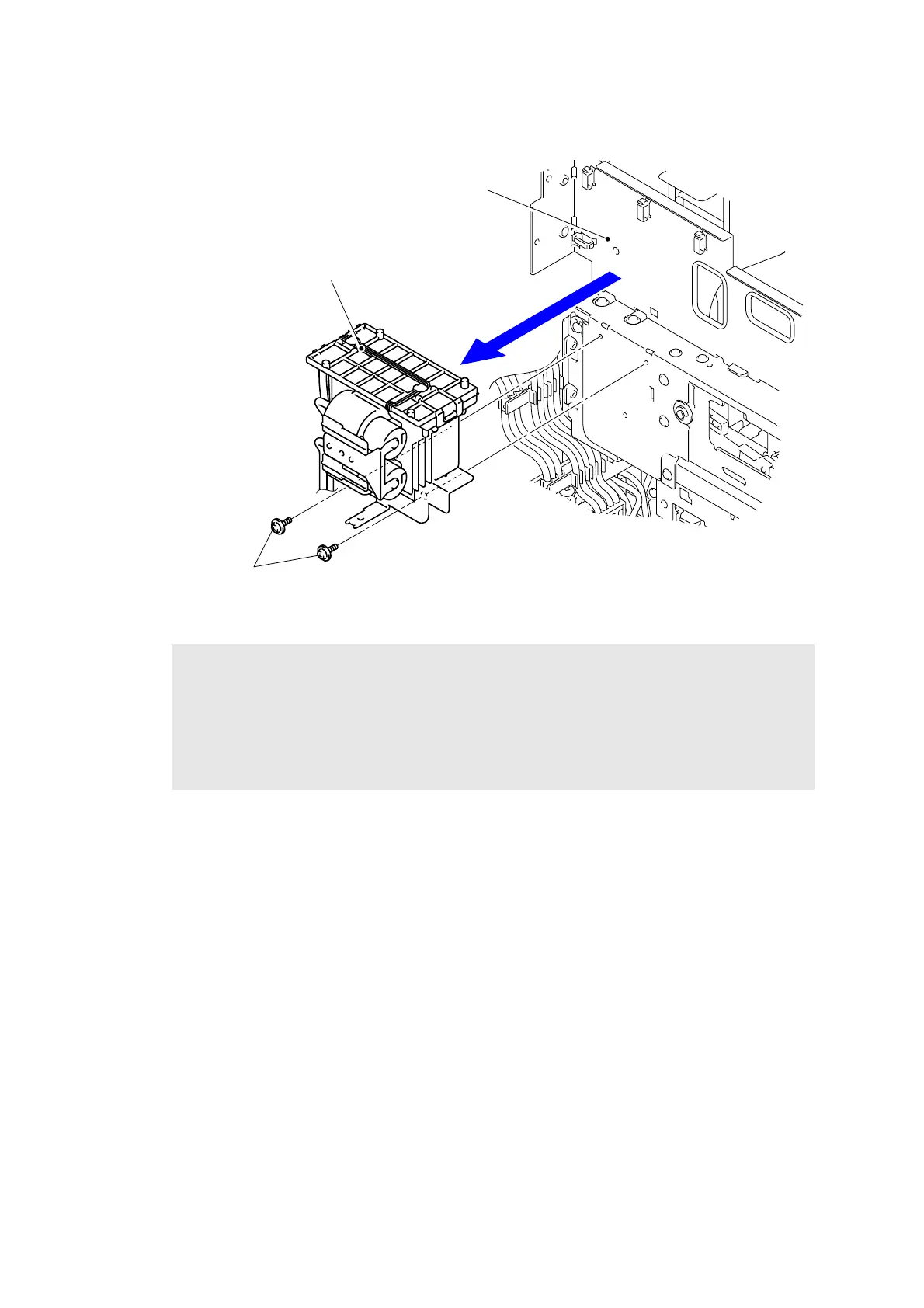

(7) Remove the two Taptite cup S M3x6 SR screws to remove the Buffer tank ASSY.
Fig. 3-109
Assembling Note:
To replace the Buffer tank ASSY, when removing the Tubes of the Humid tube BK GO A,
Humid tube FG GO A, Humid tube BK RTN B, Humid tube FG RTN B, Sub tank tube FG B,
and Sub tank tube BK B, they can be reused only once by cutting the top end of the Tubes.
When cutting a Tube, be sure to use scissors without oil and dirt attached and vertically cut
the top end of the Tube by 5 mm. If the Tube has already been cut, be sure to replace it
with a new one.
Taptite cup S M3x6 SR
Buffer tank ASSY
Main frame
To Next Page
