3-97
Confidential

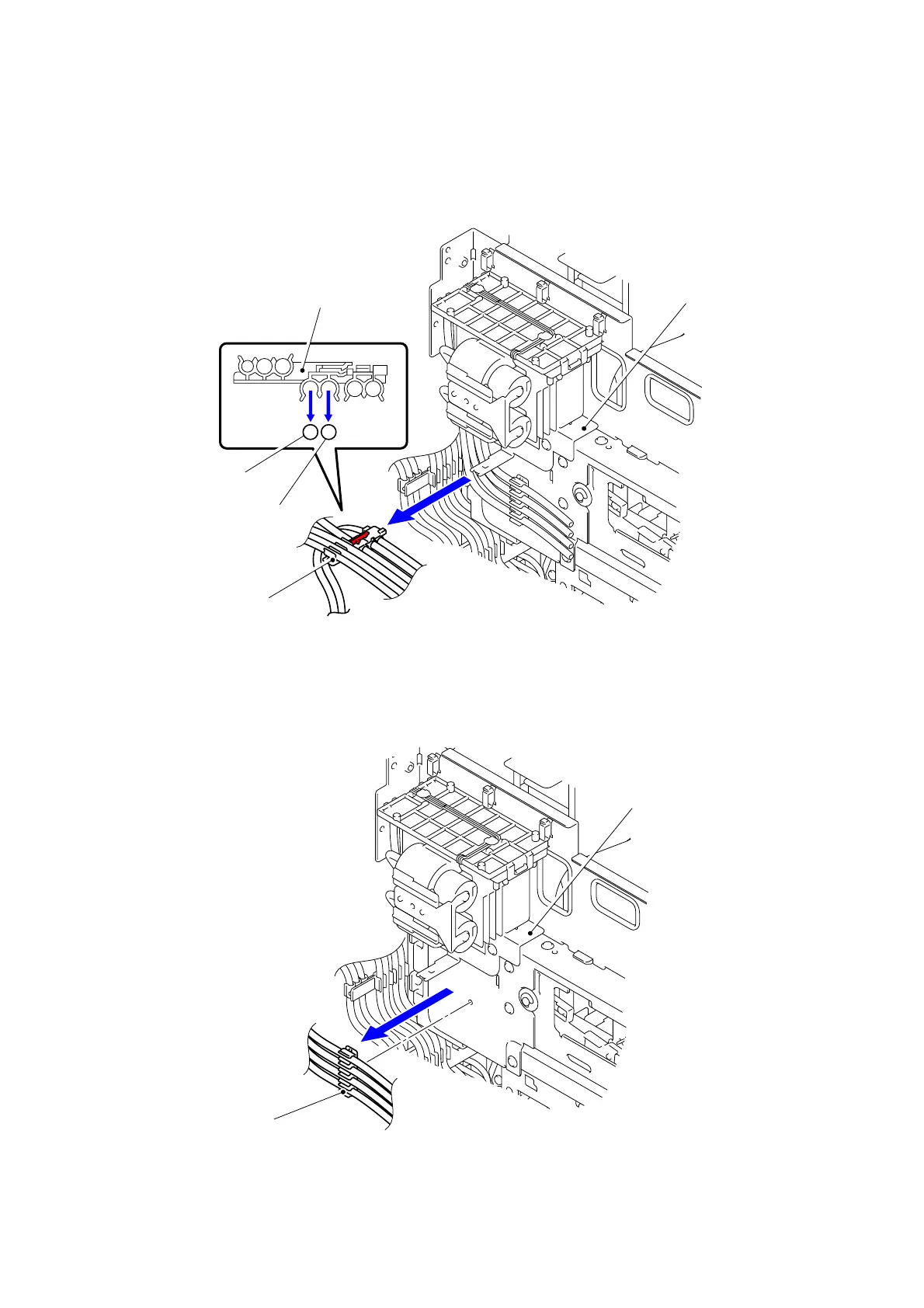

(5) Remove the Tube holder 1 from the Main frame. Remove the two Tubes from the Tube
holder 1.
- Sub tank tube FG A
- Sub tank tube BK A
Fig. 3-107
(6) Remove the Tube holder 5 from the Main frame.
Fig. 3-108
Tube holder 1
Main frame
Tube holder 1
Sub tank tube FG A
Sub tank tube BK A
Tube holder 5
Main frame
