3-144
Confidential
Fig. 3-182

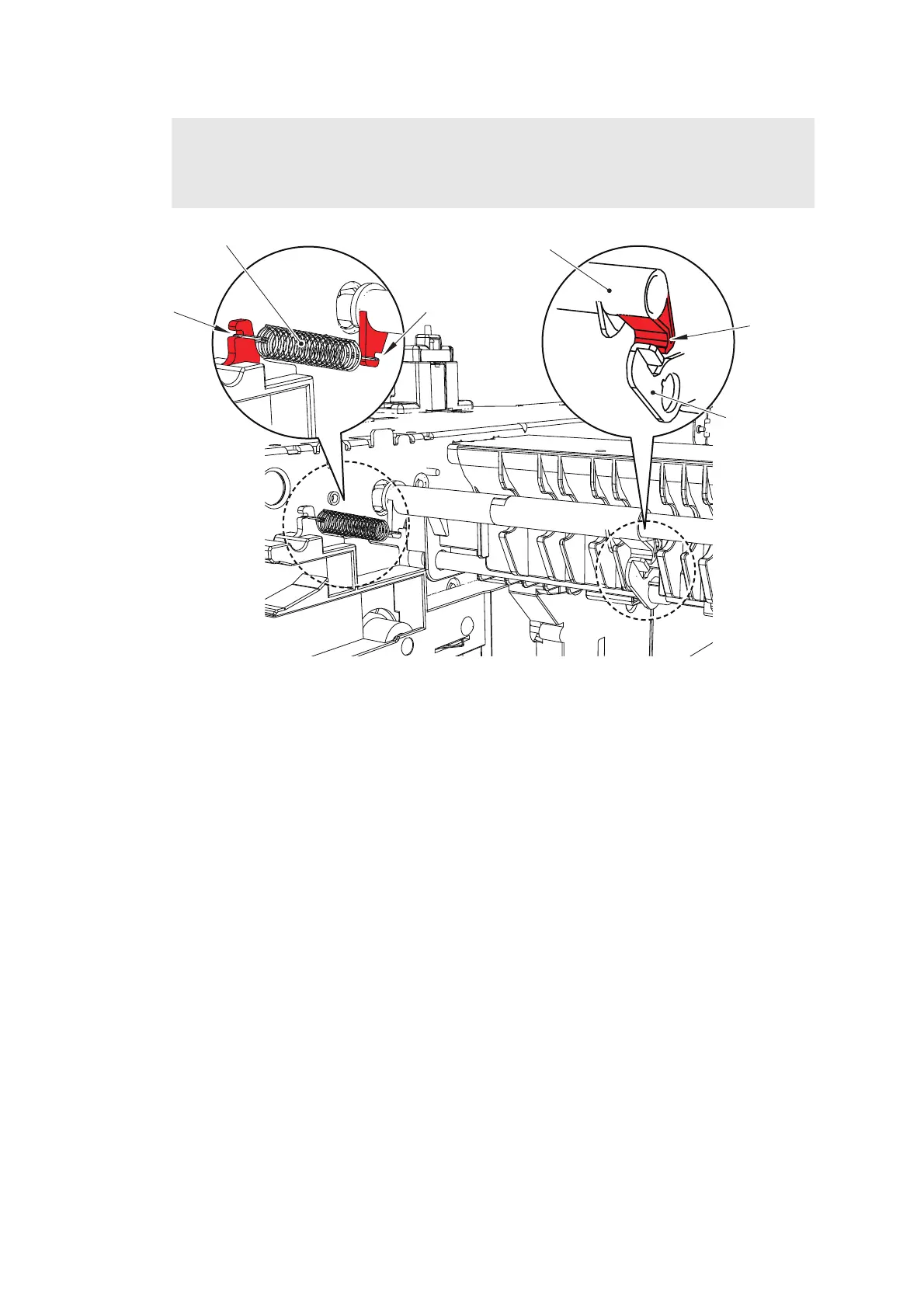

Assembling Note:
Be sure to assemble the LT feed roller ASSY in a way that the "A" of the Lift lever B and the
Paper feed holder ASSY come to the position shown in the figure below.
Be sure to install the Lift lever spring at the position shown in the figure below.
Lift lever B
“A”
Hook
Hook
Lift lever spring
Paper feed
holder ASSY
