3-137
Confidential

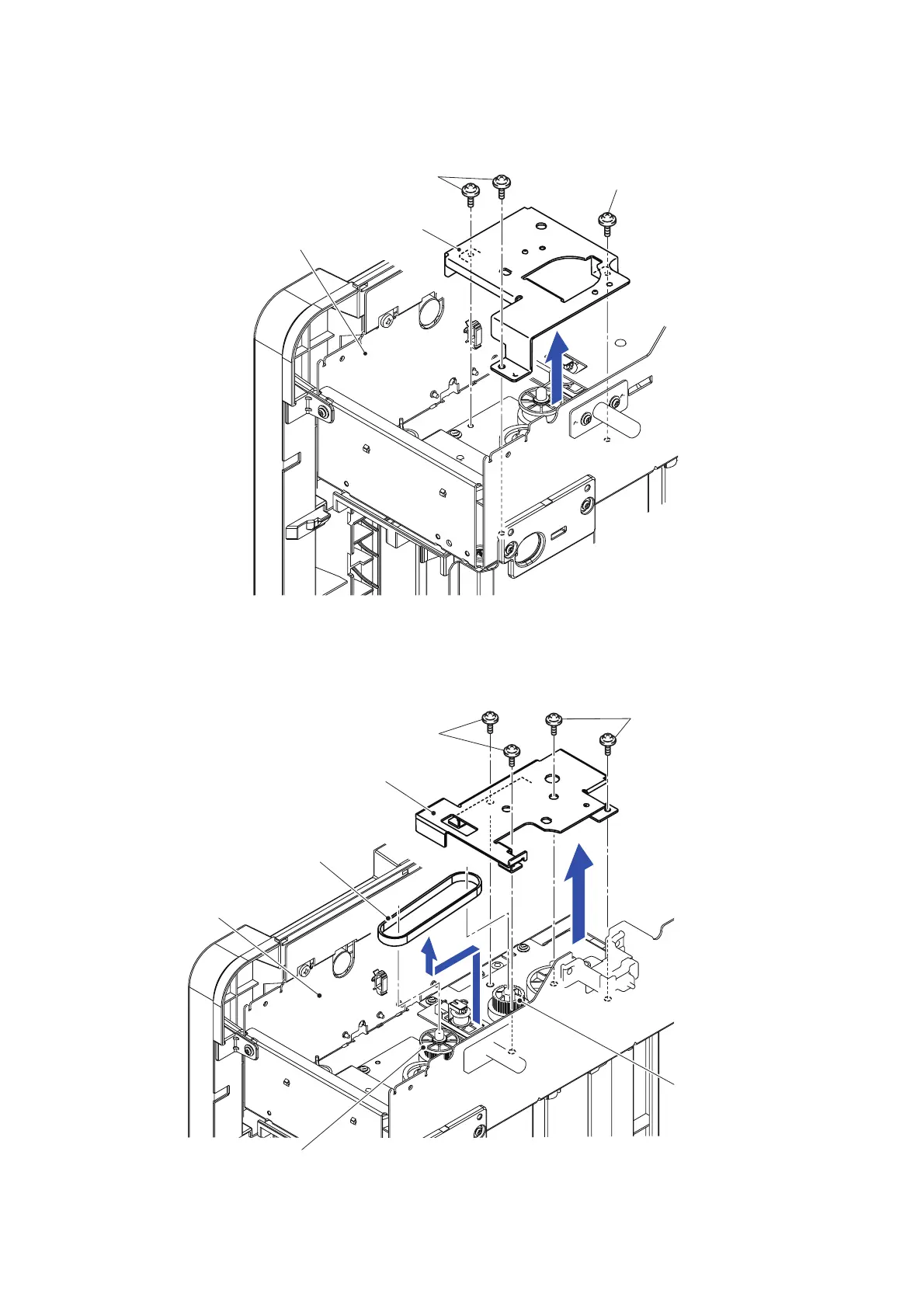

(2) Remove the three Taptite cup S M3x6 SR screws to remove the LT feed plate 2 from the
LT frame L.
Fig. 3-170
(3) Remove the four Taptite cup S M3x6 SR screws to remove the PF drive plate from the LT
frame L.
(4) Remove the Timing belt from the Idle gear 30/32T and Idle gear 30/34T.
Fig. 3-171
Taptite cup S M3x6 SR
LT frame L
Taptite cup S M3x6 SR
LT feed plate 2
<Front>
Taptite cup S M3x6 SR
PF drive plate
Timing belt
Taptite cup S M3x6 SR
Idle gear 30/34T
Idle gear 30/32T
LTframe L
<Front>
3
4
