(4) Remove the six Tubes at the Sub tank ASSY side connected to the Sub tank ASSY.
Install the Drain caps (six caps) to the locations from which the Tubes have been removed
(i.e., Needle section at the Sub tank ASSY side).
- Humid tube FG GO B
- Humid tube BK GO B
- Humid tube BK RTN A
- Humid tube FG RTN A
- Sub tank tube FG A
- Sub tank tube BK A

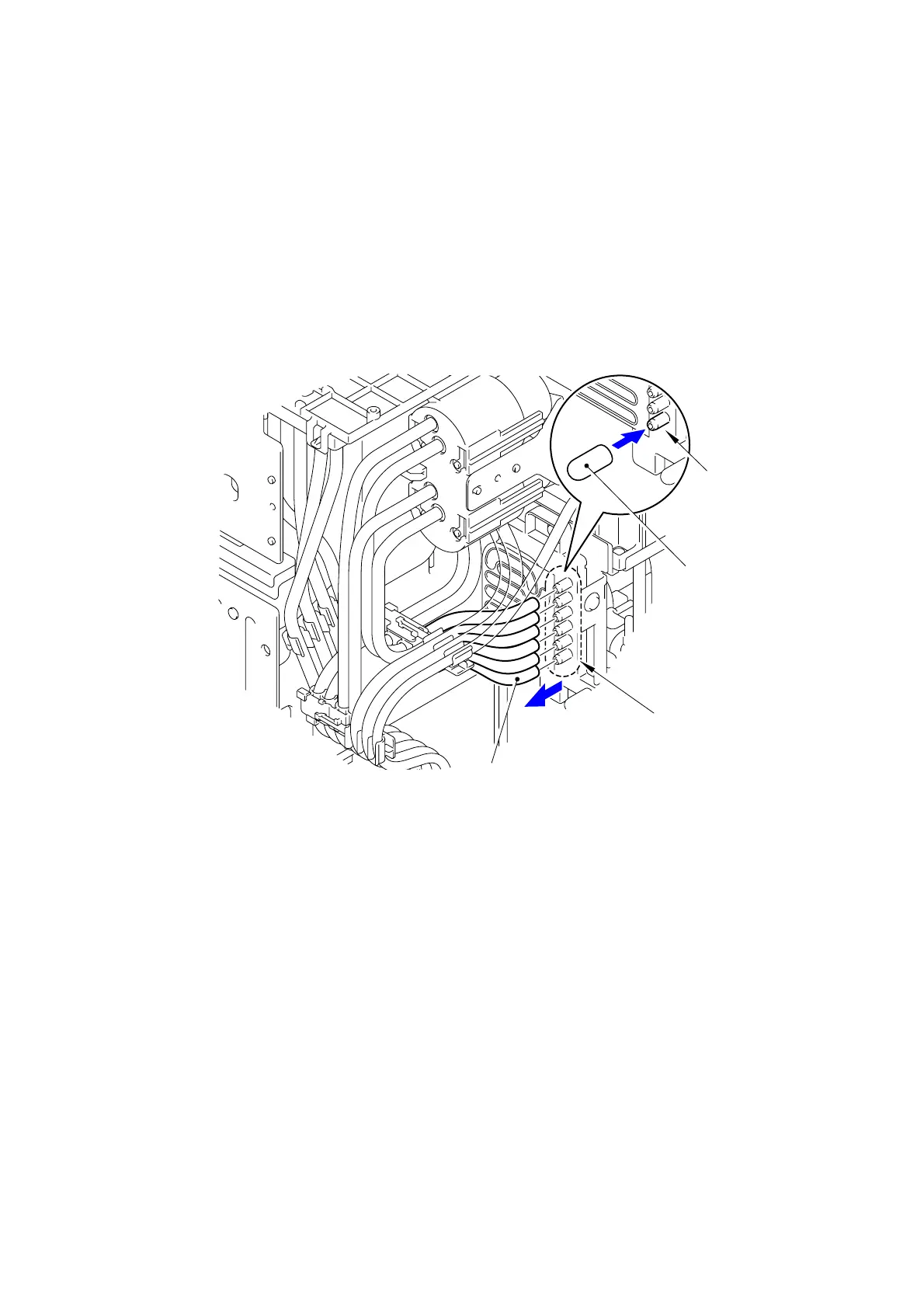

Fig. 3-76
Drain cap
Needle section
Tube
Sub tank ASSY
