3-71
Confidential

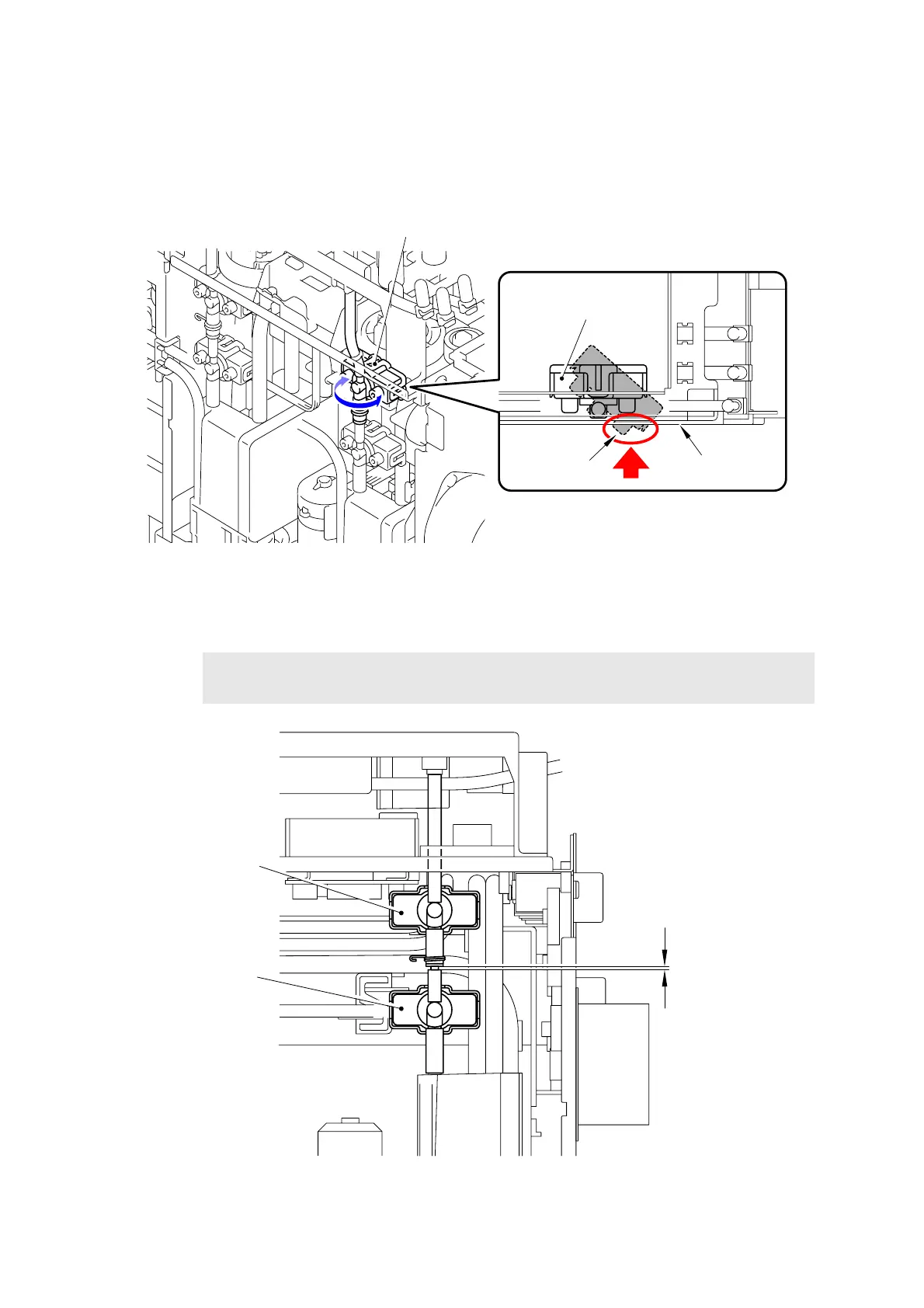

(3) Insert the Valve ASSY at the upper side of the Supply valve ASSY to the L joint of the
Tube coming from the Ink refill unit. Rotate the Valve ASSY to the position at which the
Valve ASSY does not protrude from the frame of the Sub tank ASSY when viewing from
the top.
Fig. 3-71
(4) Insert the intermediate joint of two Valve ASSYs in the Supply valve ASSY.
Fig. 3-72
Note:
The clearance between the Tubes at the intermediate joint must be within 1 mm.
Valve ASSY (upper side)
Frame of
Sub tank ASSY
Valve ASSY (upper side)
Must not protrude.
Within 1 mm
Valve ASSY
Valve ASSY
(upper side)
(lower side)
