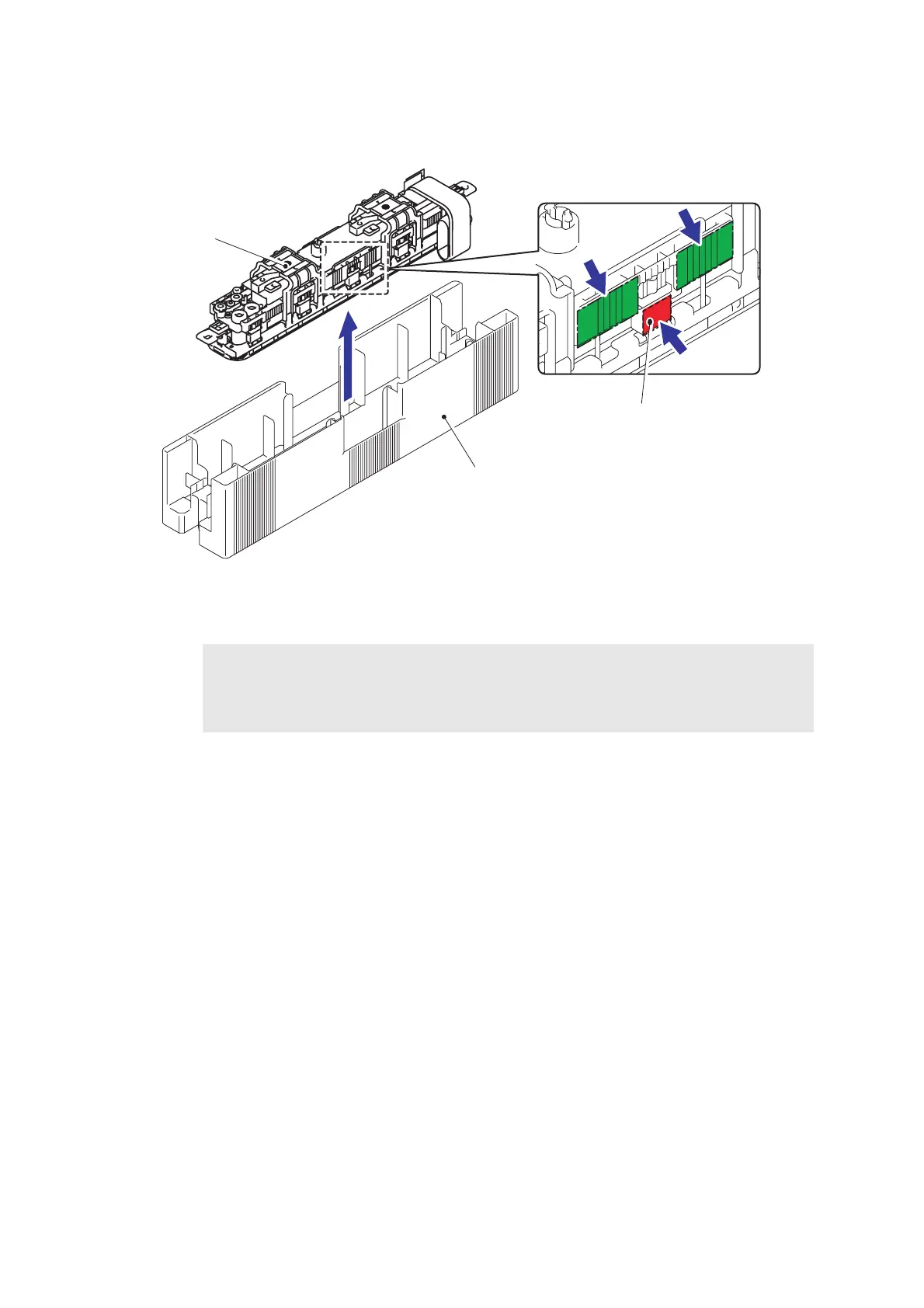

(4) Take out the Head from the Head case.
Fig. 3-102
Note:
When taking out the Head, be sure to hold the position indicated in a green dashed and
dotted line and lift the Head. Be sure not to touch the red meshed part. If it is touched,
the Head cap mechanism might be damaged.
Head case
Head
Cap spring chip
