Brother HL-S7000DN Service Manual

3-92
Confidential

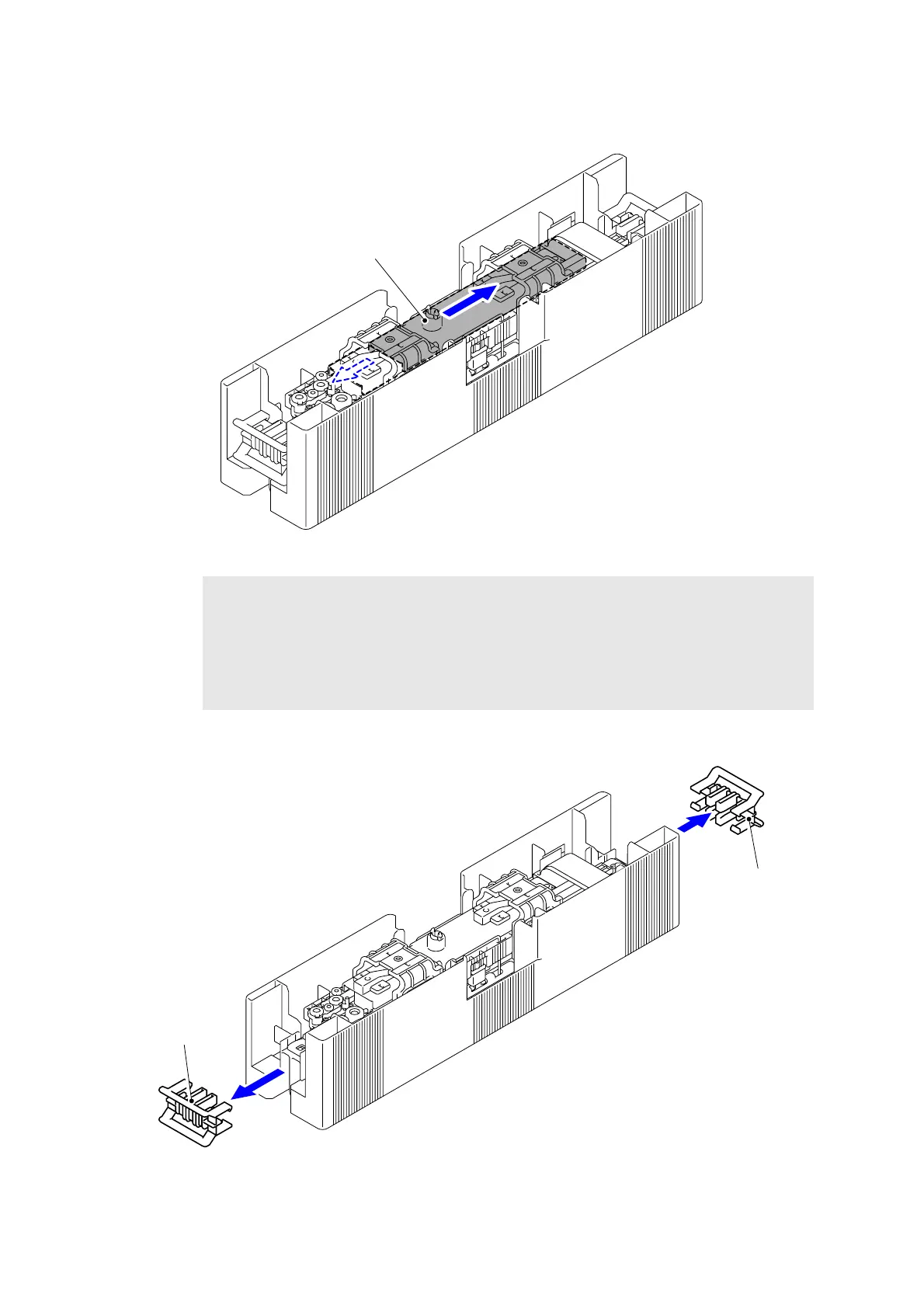

(2) Move the Cap slider of the Head cap in the arrow direction, open the Head cap.
Fig. 3-100
(3) Remove the Head lock at the left and right sides.
Fig. 3-101
Note:
- Do not return the Cap slider to the original position before it is fastened to the
carriage. Doing so may cause the cap spring chip to come out. (Refer to Fig. 3-102)
- If the Head is taken out from the Head case without opening the Head cap, there is a
possibility that the Head cap is deformed, and the sealing performance of the Head is
deteriorated.
Cap slider
Head lock
Head lock
