(3) Remove the two Tubes at the Water pump side.
- Sub tank tube FG B
- Sub tank tube BK B

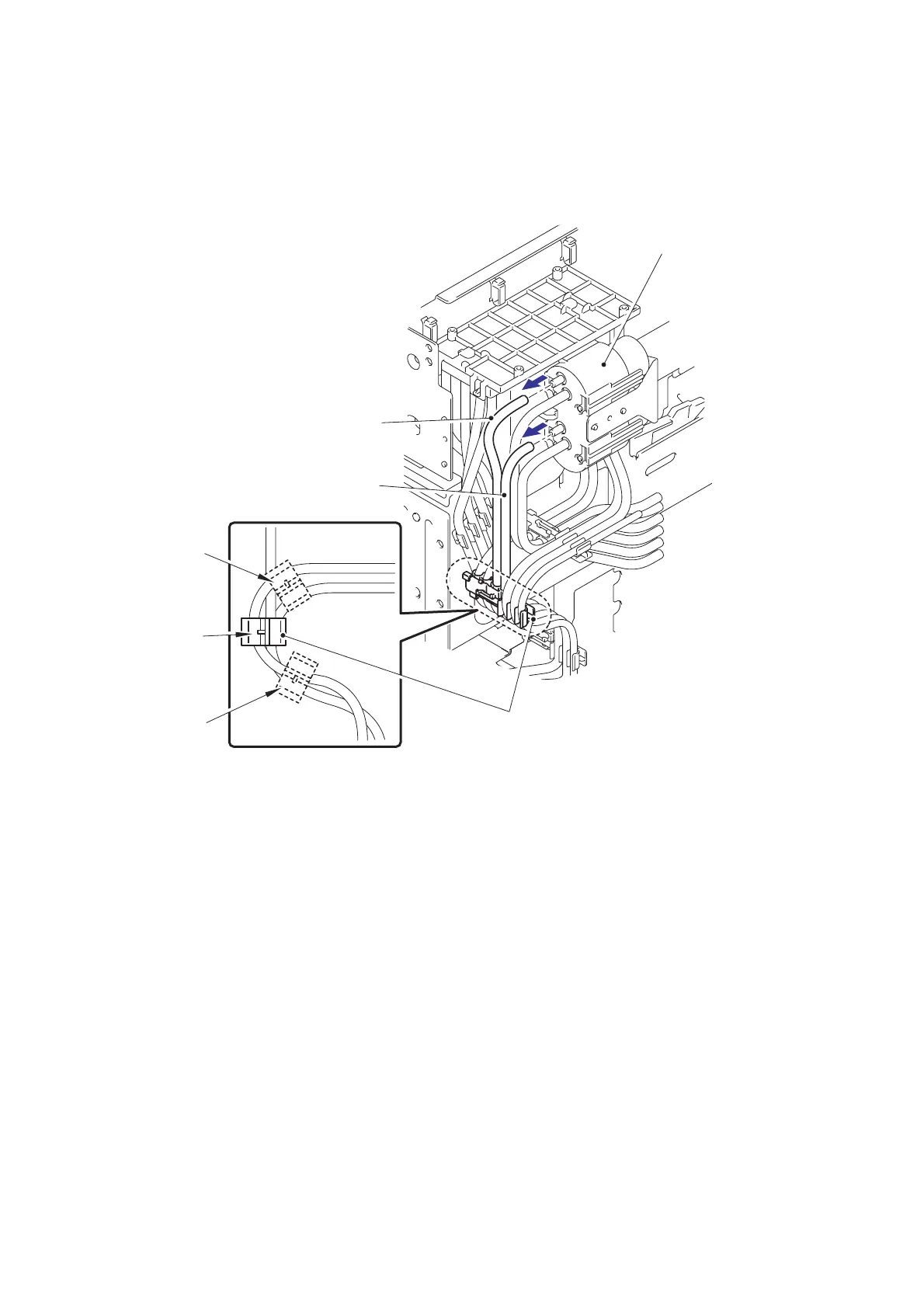

Fig. 3-105
Sub tank tube FG B
Sub tank tube BK B
Water pump
Tube clamp plate
NG
NG
OK
