3-44
Confidential

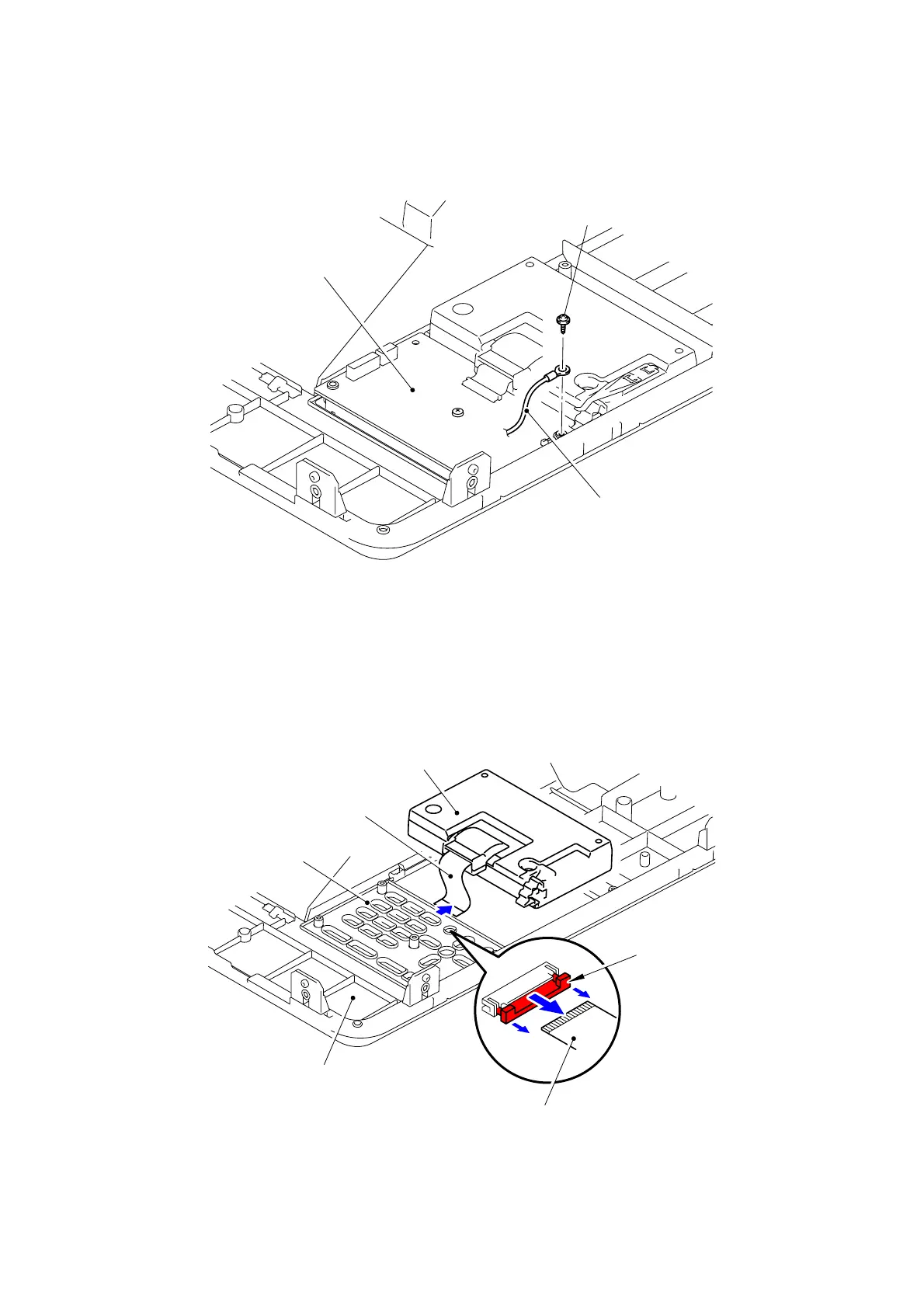

(3) Remove the Taptite bind B M3x8 screw to remove the Earth harness from the Panel PCB
ASSY.
Fig. 3-33
(4) Shift the LCD ASSY to the rear side. Remove the Lock of the connector of the LCD flat
cable to remove the LCD flat cable of the Panel PCB ASSY.
Fig. 3-34
Taptite bind B M3x8
Earth harness
Panel PCB ASSY
LCD ASSY
LCD flat cable
Panel PCB ASSY
Top cover ASSY
Lock
LCD flat cable
